SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts


03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts

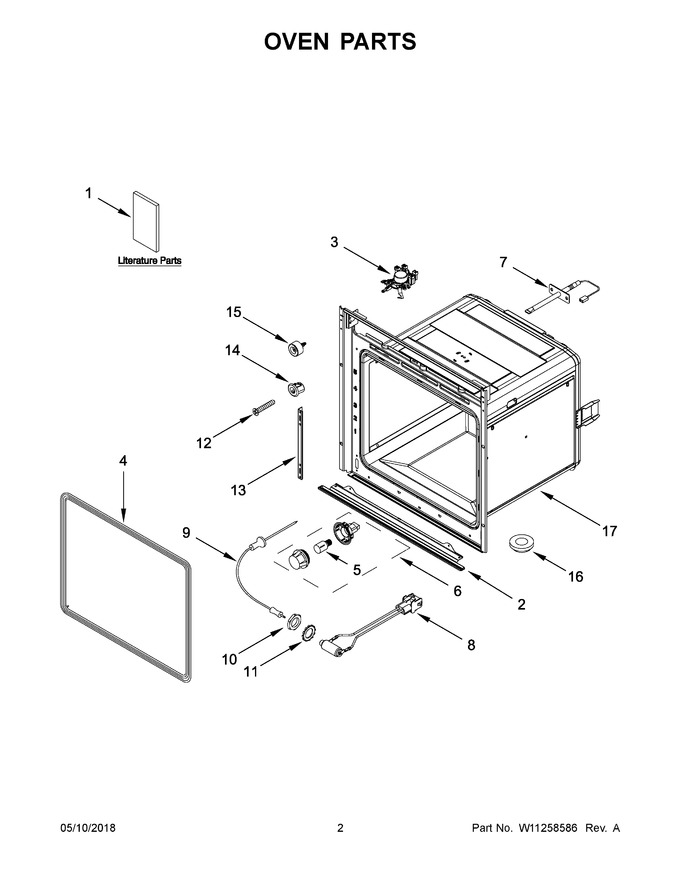

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	501971002095		Installation Instructions		Appelez-nous	-
2	W10517979		Trim, Lower			Immediately	$ 76.73
3	W11259381		Latch, Door			Immediately	$ 277.28
4	W10518387		Gasket, Door				$ 166.91
5	W11791037		Bulb, Halogen 40 Watt   (Replaces: W10518971)				$ 32.51
6	W11237410		Assembly, Bulb Includes Socket And Lens Cover   (Replaces: W10638530)			Immediately	$ 21.29
7	W10518975		Sensor, Temperature			Immediately	$ 212.18
8	W11237411		Socket, Meat Probe With Harness   (Replaces: W10634657)		Appelez-nous	-
9	W10518976		Probe, Meat				$ 51.46
10	W10519007		Nut, Meat Probe 10x1.57		Appelez-nous	-
11	W10519008		Washer, Meat Probe		Appelez-nous	-
12	W10519011		Kit, Oven Screws				$ 41.78
13	W10517968		Hinge, Running Mechanism		Appelez-nous	-
14	W10519010		Bumper, Oven				$ 17.30
15	W10519005		Bumper, Oven Door		Appelez-nous	-
16	W10545973		Foot, Level Oven		Appelez-nous	-
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
1A	400010890404		Use And Care Guide		Appelez-nous	-
1B	W11085293		Wiring Diagram		Appelez-nous	-
NI	W11237388		Kit, Power Cord (no Plug)   (Replaces: W10472786)				$ 112.31
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
