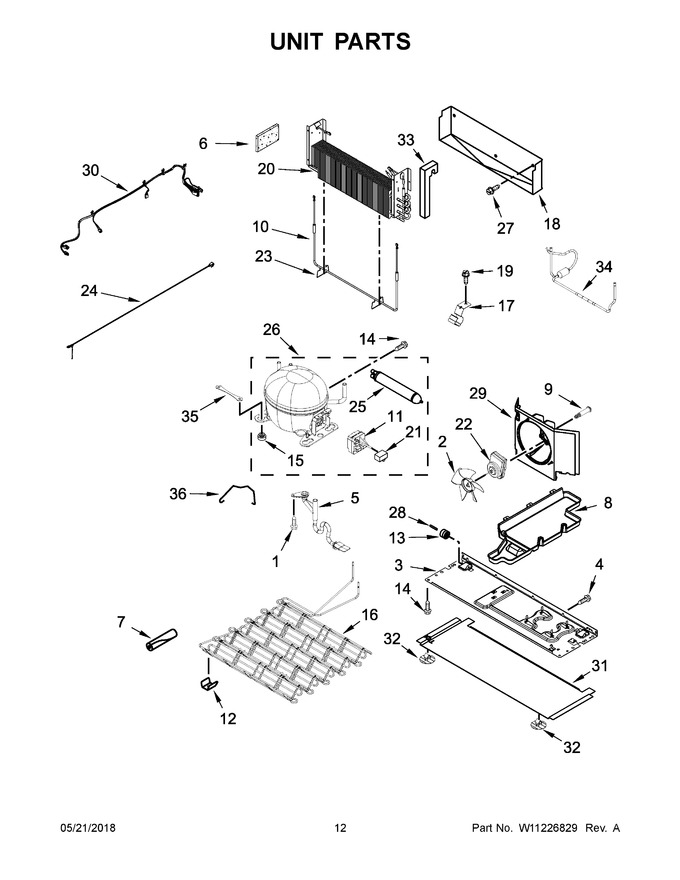

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10141518 | Screw |
|
$ 8.59 | |||||
| 2 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 87.56 | ||||
| 3 | W10570074 | Baseplate |
|
$ 133.51 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 5 | W11712703 | Extension, Drain (Replaces: W10776917) |
|
$ 40.37 | |||||
| 6 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 19.19 | ||||
| 8 | W11225840 | Tray, Evaporator (Replaces: W10660727) |
|
Immediately | $ 142.44 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.95 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 106.70 | ||||
| 11 | W10873801 | Device, Start (Replaces: W10796752) |
|
Immediately | $ 103.95 | ||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 6.64 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 16 | W11760073 | Assembly, Condenser (Replaces: W10627646) |
|
$ 151.92 | |||||
| 17 | W10281329 | Clip, Drier |
|
$ 12.36 | |||||
| 18 | W11408656 | Tray, Drip (Replaces: W10342573) |
|
$ 41.02 | |||||
| 19 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 20 | WPW10608485 | Assembly, Evaporator (Replaces: W10248589) |
|
Immediately | $ 335.40 | ||||
| 21 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 89.54 | ||||
| 22 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 203.92 | ||||
| 23 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 133.36 | |||||
| 24 | W11171078 | Harness, Unit (includes Power Cord) |
|
$ 139.54 | |||||
| 25 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 26 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 751.08 | |||||
| 27 | W11544659 | Screw (Replaces: W10142294) |
|
$ 12.92 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 74.02 | |||||
| 30 | W11254160 | Cord, Power (Replaces: W10738415) |
|
Immediately | $ 165.29 | ||||
| 31 | W10278140 | Cover, Condenser (bottom) |
|
$ 84.65 | |||||
| 32 | W10815861 | Clip, Bottom Cover |
|
$ 14.22 | |||||
| 33 | W10491355 | Gasket, Airdam |
|
$ 20.05 | |||||
| 34 | WPW10463542 | Tube, Suction (Replaces: W10463542) |
|
$ 87.25 | |||||
| 35 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 36 | W10650382 | Strap, Bale |
|
- | |||||
| NI | N/P | Refrigerant Charge 5.50 Oz. (r-134a) |
|
- |
