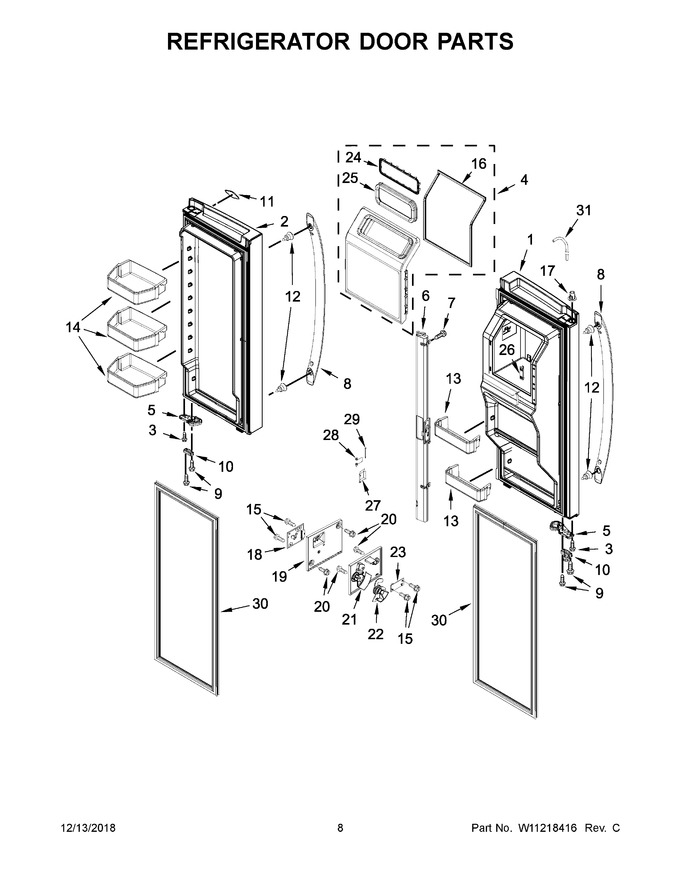

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11256298 | Door, Left (black Stainless) (Replaces: W11175521) |
|
$ 1,040.62 | |||||
| 2 | W11104459 | Door, Right (black Stainless) (Replaces: W11036468) |
|
$ 863.96 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W11171728 | Assembly, Ice Door (Replaces: W10549592) |
|
$ 194.80 | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 6 | W10698196 | Mullion, Door (black) |
|
$ 130.55 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W11125624 | Handle, Door (black Stainless) (Replaces: W11101972) |
|
$ 171.40 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 43.51 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | W11366475 | Trivet, 2 Liter (Replaces: W10728185) |
|
Immediately | $ 92.10 | ||||
| 14 | W11371716 | Bin, Gallon (Replaces: W10728194) |
|
Immediately | $ 150.87 | ||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 12.41 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 62.47 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.09 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 296.07 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 40.05 | |||||
| 20 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 80.77 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.04 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 205.25 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 29.09 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 44.07 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 20.84 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 71.69 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 29 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 30 | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 298.05 | |||||
| 31 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 115.89 | |||||
| 10A | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 1A | W10757550 | Door, Left (stainless) (Replaces: W10751215) |
|
$ 1,189.12 | |||||
| 2A | W10757549 | Door, Right (stainless) (Replaces: W10751212) |
|
$ 1,195.26 | |||||
| 30A | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 296.27 | ||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 | |||||
| 6A | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 255.29 | ||||
| 8A | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 164.98 |
