01 - Cover Sheet

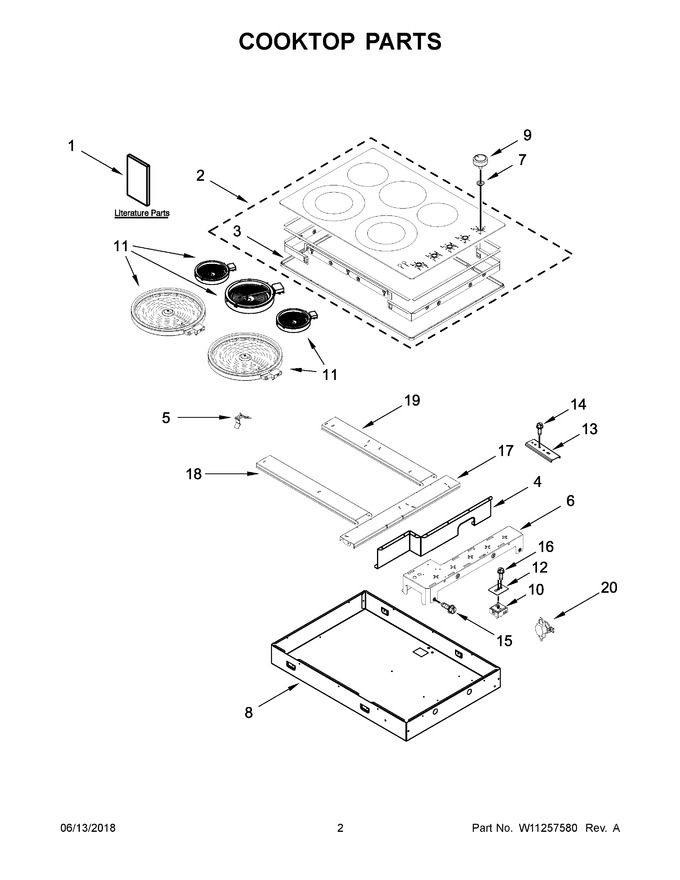

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11255351 | Cooktop (black) (Replaces: W11120989) |
|
$ 484.39 | |||||
| 3 | N/P | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W11302589 | Shield, Switch (Replaces: W11172720) |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11302595 | Plate, Switch (Replaces: W11215837) |
|
$ 69.20 | |||||
| 7 | W10853046 | Grommet (stainless) (Replaces: W10593536) |
|
Immediately | $ 67.08 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11084158 | Knob, Control (stainless) (Replaces: W10884728) |
|
$ 22.68 | |||||
| 10 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 11 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 17 | W11171778 | Rail, Vertical |
|
- | |||||
| 18 | W11175475 | Rail, Horizontal Front |
|
- | |||||
| 19 | W11171776 | Rail, Horizontal Rear |
|
- | |||||
| 20 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 176.19 | ||||
| 10A | W10911303 | Switch, Infinite (left Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 10B | W11661906 | Switch, Infinite (center Rear) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| 10C | W11259362 | Switch, Infinite (right Front) (Replaces: W11117250) |
|
Immediately | $ 149.35 | ||||
| 10D | W10917724 | Switch, Infinite (right Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 11A | W11171119 | Element (1200w) (left Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 11B | WP8273993 | Element (1800w) (center Rear) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 11C | W11259508 | Element (3200w) (right Front) (Replaces: W11117008) |
|
Immediately | $ 304.66 | ||||
| 11D | WPW10342780 | Element (1300w) (right Rear) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11161586 | Guide, Use & Care |
|
- | |||||
| 1C | W11238365 | Diagram, Wiring |
|
- | |||||
| 2A | W11259505 | Cooktop (stainless) (Replaces: W11120990) |
|
$ 723.70 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | W11684785 | Insulation, Cooktop (knob) (Replaces: W11161211) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11110552 | Harness, Main |
|
Immediately | $ 324.03 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| NI | WP90767 | Screw (for Main Harness) (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 |
