01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Top Venting Parts
05 - Oven Door Parts

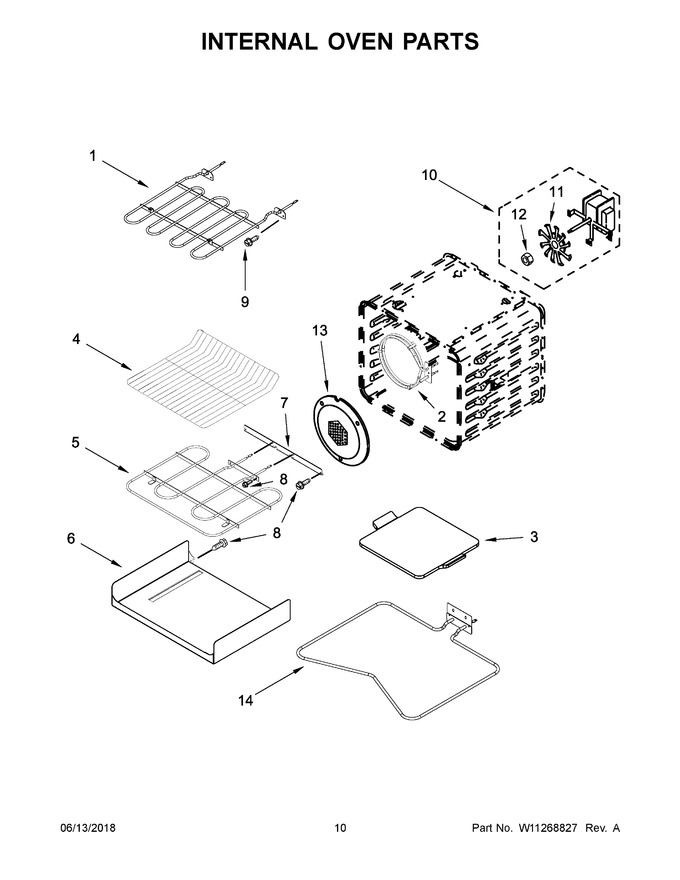

06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10685631 | Element, Broil |
|
$ 134.36 | |||||
| 2 | WP9760769 | Element, Convection (Replaces: 9760769) |
|
Immediately | $ 304.09 | ||||
| 3 | W10696057 | Stone, Baking |
|
$ 93.74 | |||||
| 4 | 4448716 | Rack, Oven |
|
$ 76.34 | |||||
| 5 | WPW10207398 | Element, Bake (hidden) (Replaces: W10207398) |
|
Immediately | $ 134.10 | ||||
| 6 | 4455035 | Tray, Hidden Bake |
|
- | |||||
| 7 | 4450039 | Cover, Hidden Bake Tray |
|
$ 82.90 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 10 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 191.93 | ||||
| 11 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 12 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 13 | WPW10160821 | Cover, Fan (Replaces: W10160821) |
|
$ 257.03 | |||||
| 14 | W11628765 | Element, Bake (Replaces: W10745723) |
|
$ 111.24 |
