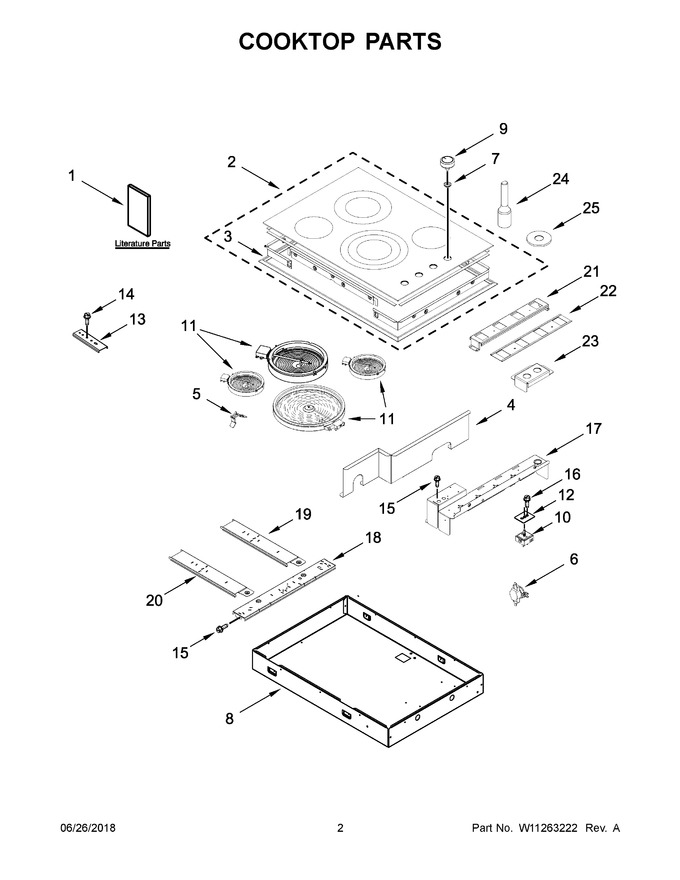

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11236401 | Instruction, Installation |
|
- | |||||
| 2 | W11261602 | Cooktop (black) (Replaces: W11120999) |
|
$ 620.12 | |||||
| 3 | N/P | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W11158444 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 176.19 | ||||
| 7 | W11447840 | Grommet (black) (Replaces: W10559484) |
|
Immediately | $ 33.89 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11263353 | Knob, Control (black) (Replaces: W11130601) |
|
$ 71.89 | |||||
| 10 | W10917724 | Switch, Infinite (left Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 11 | WPW10342780 | Element (1300w) (left Front) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 17 | W11240393 | Plate, Switch |
|
$ 70.86 | |||||
| 18 | W11102042 | Rail, Vertical (Replaces: W11175479) |
|
$ 18.34 | |||||
| 19 | W11175474 | Rail, Horizontal Rear |
|
- | |||||
| 20 | W11175476 | Rail, Horizontal Front |
|
- | |||||
| 21 | W11240501 | Bracket, Cooktop Lights |
|
$ 77.99 | |||||
| 22 | W11240502 | Bracket, Cooktop Lights Top |
|
$ 71.04 | |||||
| 23 | W11242040 | Block, Cooktop Lights |
|
- | |||||
| 24 | W11263787 | Shaft, Extensor (Replaces: W11131177) |
|
$ 22.19 | |||||
| 25 | W11310261 | Lens, Lighted (Replaces: W11130622) |
|
Immediately | $ 23.87 | ||||
| 10A | W10857622 | Switch, Infinite (left Rear) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 10B | W11129442 | Switch, Infinite (right Front) (Replaces: W10437097) |
|
Immediately | $ 98.78 | ||||
| 10C | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 11A | W11517959 | Element (3000/1400w) (left Rear) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 11B | W10823720 | Element (3000w) (right Front) (Replaces: W10187839) |
|
Immediately | $ 348.12 | ||||
| 11C | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11161577 | Guide, Use & Care |
|
- | |||||
| 1C | W11238369 | Diagram, Wiring |
|
- | |||||
| 2A | W11265129 | Cooktop (stainless) (Replaces: W11121000) |
|
- | |||||
| 7A | W11568604 | Grommet (stainless) (Replaces: W10559483) |
|
Immediately | $ 42.17 | ||||
| 9A | W11263355 | Knob, Control (stainless) (Replaces: W11130605) |
|
$ 71.73 | |||||
| NI | W11265512 | Insulation, Cooktop Knob (Replaces: W11160643) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11110550 | Harness, Main |
|
$ 251.55 | |||||
| NI | W11129322 | Harness Switch, Lighted |
|
Immediately | $ 266.93 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 |
