SELECT A DIAGRAM

01 - Cover Sheet

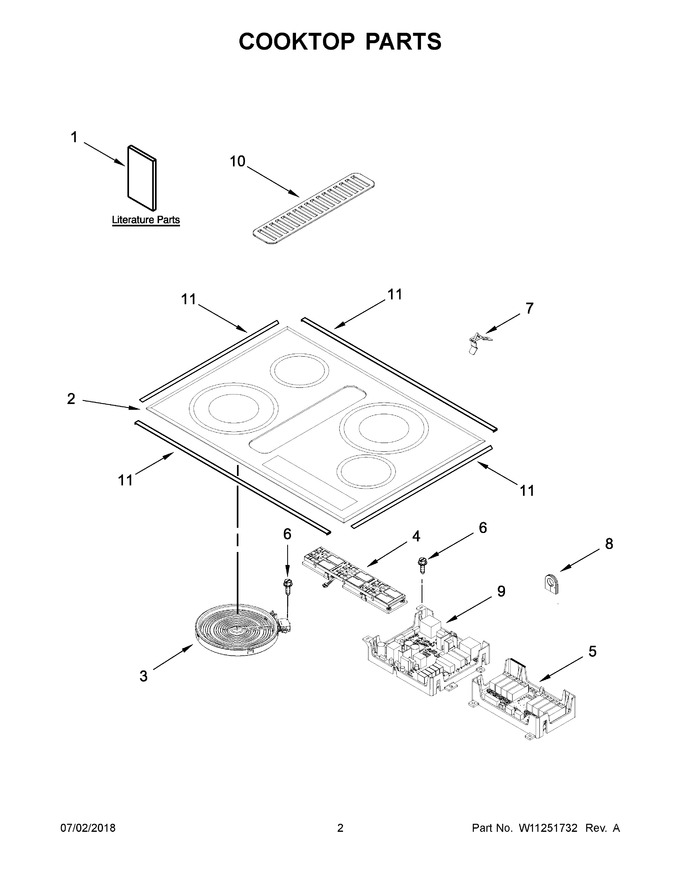

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848428		Instructions, Installation		Appelez-nous	-
2	W10796745		Top (black)		Appelez-nous	-
3	W11517959		Element (3000/1400w) (left Front & Right Rear)   (Replaces: W10275048)			Immediately	$ 132.01
4	W11083931		Assembly, Ui   (Replaces: W11032484)				$ 529.18
5	W11083951		Control, Electronic   (Replaces: W10817977)				$ 504.97
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
7	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
8	W10324729		Grommet, Wire (gray) (large Hole)				$ 8.13
9	W10817979		Manager, Appliance		Appelez-nous	-
10	W11476087		Grille, Air (black)   (Replaces: W10844354)			Immediately	$ 375.30
11	W11091955		Assembly, Trim (stainless Models Only)   (Replaces: W10836028)				$ 281.15
1A	W10848426		Instructions, User		Appelez-nous	-
1B	W11031713		Sheet, Tech		Appelez-nous	-
1C	W10917819		Diagram, Wiring		Appelez-nous	-
2A	W10908403		Top (stainless)		Appelez-nous	-
3A	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 151.61
3B	W11171119		Element (1200w) (right Front)   (Replaces: 8273994)			Immediately	$ 203.06
NI	W11190486		Harness, Cooktop Element				$ 186.32
NI	WP71001171		Screw, Grounding   (Replaces: 7101P460-60)				$ 6.57
NI	W10909126		Kit, Plenum Screw			Immediately	$ 19.93
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 140.81
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.85
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11190487		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
