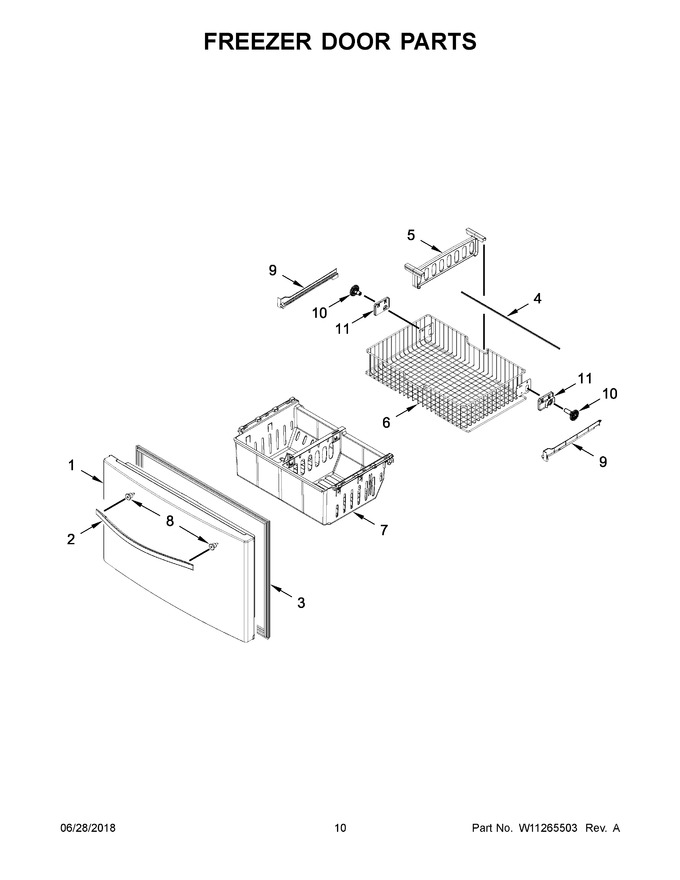

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11301145 | Door, Freezer (stainless) (Replaces: W11254671) |
|
$ 782.34 | |||||
| 2 | W10827046 | Handle, Door (stainless) (Replaces: W10719666) |
|
Immediately | $ 209.79 | ||||
| 3 | WPW10714545 | Gasket, Door (grey) (Replaces: W10714545) |
|
$ 291.24 | |||||
| 4 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 29.14 | |||||
| 5 | W10146439 | Divider, Upper Basket |
|
$ 29.39 | |||||
| 6 | W11218042 | Basket, Upper (Replaces: W11115237) |
|
$ 183.09 | |||||
| 7 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 163.06 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | W11489993 | Rack, Side (left Hand) (Replaces: W10516603) |
|
Immediately | $ 21.11 | ||||
| 10 | WPW10474716 | Spur, Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 11 | W10348259 | Mount, Gear (left Hand) |
|
$ 80.88 | |||||
| 10A | WPW10474715 | Spur, Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 | ||||
| 11A | W10348260 | Mount, Gear (right Hand) |
|
$ 80.91 | |||||
| 9A | W11489994 | Rack, Side (right Hand) (Replaces: W10516602) |
|
Immediately | $ 21.11 |
