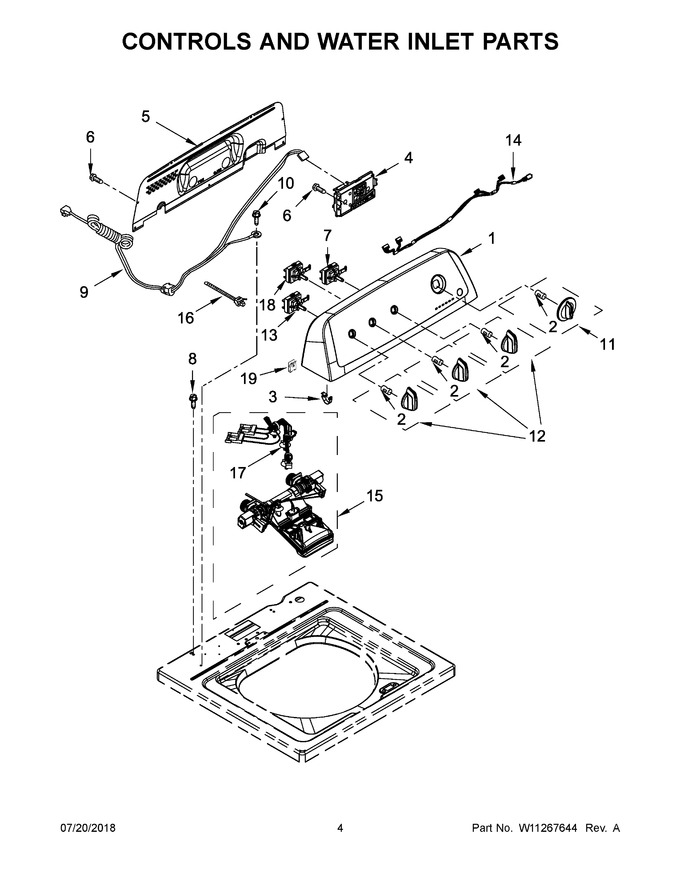

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219608 | Panel, Console (Replaces: W11158211) |
|
Immediately | $ 350.03 | ||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W11498190 | Control Unit Assembly, Machine And Motor (Replaces: W11211478) |
|
Immediately | $ 319.67 | ||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 237.41 | |||||
| 6 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 7 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 179.60 | |||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 9 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 121.53 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 11 | WPW10711289 | Knob, Timer (white) (Replaces: W10711289) |
|
Immediately | $ 7.50 | ||||
| 12 | WPW10453947 | Knob, Control (white) (Replaces: W10453947) |
|
$ 49.28 | |||||
| 13 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 169.49 | ||||
| 14 | W10694671 | Harness, Upper |
|
$ 171.54 | |||||
| 15 | W11210459 | Inlet Assembly, Water (Replaces: W11025984) |
|
Immediately | $ 94.50 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 17 | W10868094 | Harness, Valve |
|
$ 167.50 | |||||
| 18 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 197.20 | ||||
| 19 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 |
