SELECT A DIAGRAM

01 - Cover Sheet

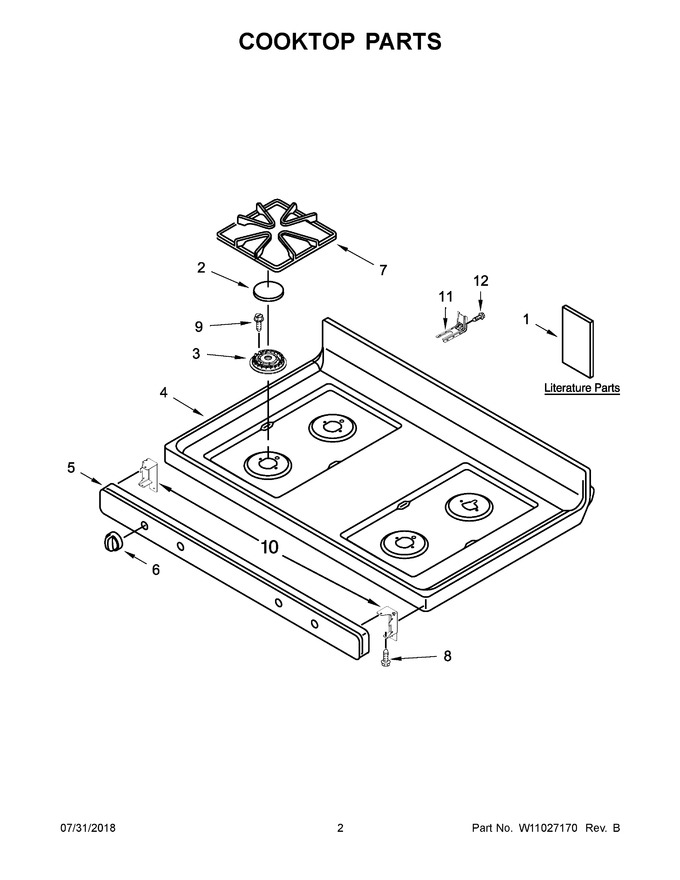

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11122558		Instructions, Installation		Appelez-nous	-
2	WPW10170554		Set, Burner Cap (black)   (Replaces: W10170554)				$ 126.23
3	WPW10515452		Assembly, Burner (12k) (left Front)   (Replaces: W10515452)				$ 80.01
4	8272253		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 158.56
6	WPW10200193		Knob, Control (black)   (Replaces: W10200193)				$ 21.76
7	WPW10268483		Kit, Grate (black)   (Replaces: 8053580)				$ 126.02
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
1A	W11122566		Owners Manual		Appelez-nous	-
1B	W10538793		Sheet, Tech (english)		Appelez-nous	-
1C	W10538794		Sheet, Tech (french)		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear & Right Front)   (Replaces: W10515454)				$ 104.17
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 89.36

    View Diagram in Separate Window       Print Part List
