SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts

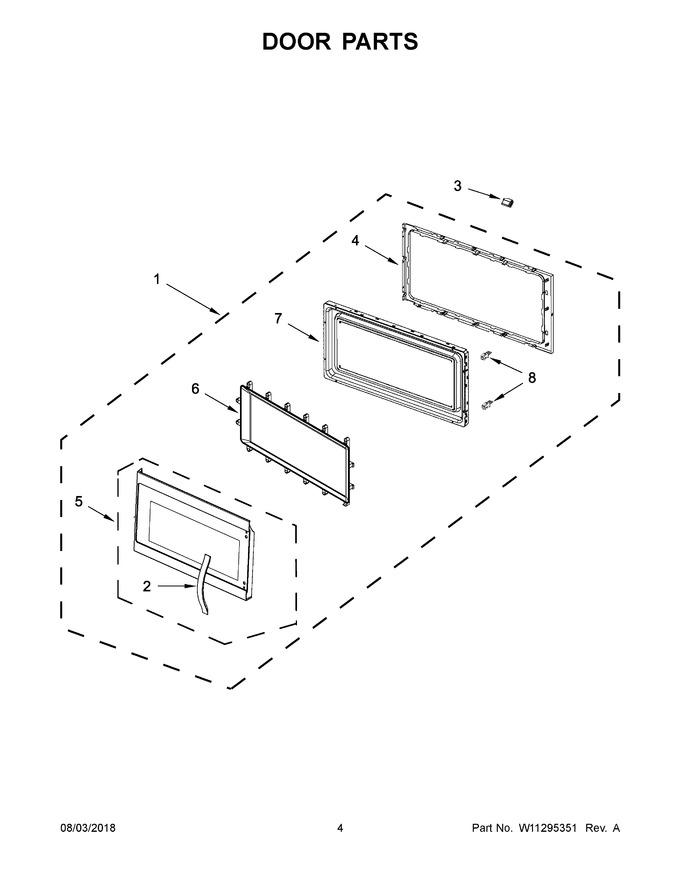

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10893434		Door, Complete (white)		Appelez-nous	-
2	W10445124		Handle (white)				$ 195.20
3	W10643975		Stopper, Door (for White Models)				$ 20.44
4	W10647773		Frame, Inner (for White Models)				$ 80.46
5	W10802518		Assembly, Door Frame (white)		Appelez-nous	-
6	W10562560		Plate, Steam Protection (for White Models)		Appelez-nous	-
7	W10647794		Foil, Door (for White Models)		Appelez-nous	-
8	W10740455		Hook, Door			Immediately	$ 50.58
1A	W10893436		Door, Complete (black)		Appelez-nous	-
2A	W10445138		Handle (black)				$ 191.26
3A	W10643974		Stopper, Door (for Black Models)				$ 20.39
4A	W10647772		Frame, Inner (for Black Models)				$ 90.28
5A	W10802519		Assembly, Door Frame (black)		Appelez-nous	-
6A	W10514243		Plate, Steam Protection (for Black Models)				$ 71.16
7A	W10647793		Foil, Door (for Black Models)				$ 181.46

    View Diagram in Separate Window       Print Part List
