01 - Cover Sheet

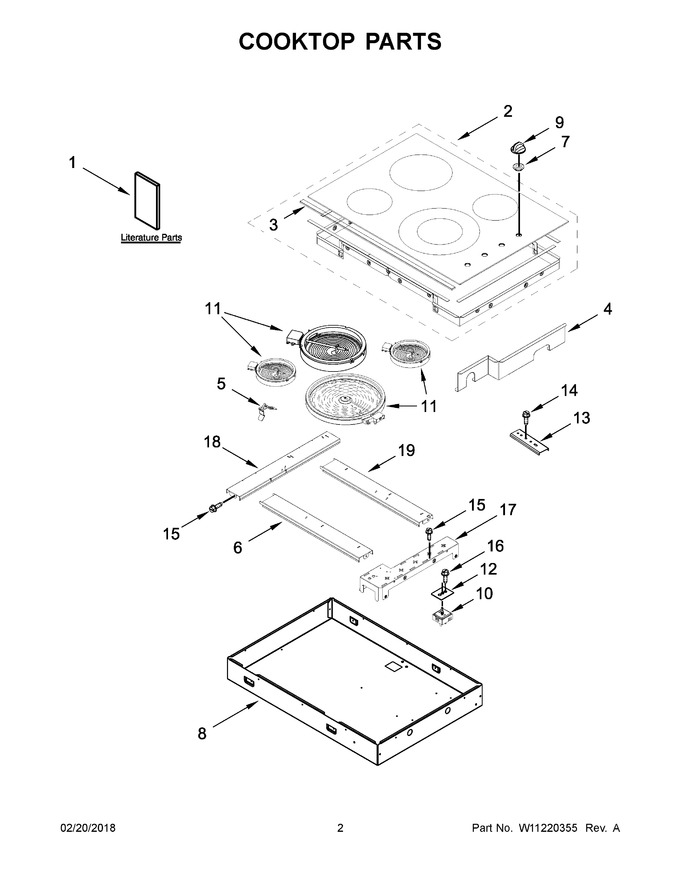

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11178304 | Instructions, Installation |
|
- | |||||
| 2 | W11223301 | Cooktop (black) (Replaces: W11120971) |
|
Immediately | $ 435.92 | ||||
| 3 | N/P | Trim, Front Stainless (not Serviced) |
|
- | |||||
| 4 | W11302589 | Shield, Switch (Replaces: W11172720) |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11171777 | Rail, Horizontal Front |
|
- | |||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 7.61 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11222048 | Knob, Control (black) (Replaces: W11130625) |
|
Immediately | $ 71.33 | ||||
| 10 | W10911303 | Switch, Infinite (left Front & Right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 11 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 17 | W11172719 | Plate, Switch |
|
- | |||||
| 18 | W11102042 | Rail, Vertical (Replaces: W11175477) |
|
$ 18.34 | |||||
| 19 | W11171776 | Rail, Horizontal Rear |
|
- | |||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| 10B | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 11A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 11B | WPW10275049 | Element (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 312.78 | ||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11161549 | Guide, Use & Care |
|
- | |||||
| 2A | W11223304 | Cooktop (white) (Replaces: W11120973) |
|
$ 445.60 | |||||
| 2B | W11223306 | Cooktop (stainless) (Replaces: W11120972) |
|
Immediately | $ 482.87 | ||||
| 7A | W10372006 | Grommet (grey) |
|
- | |||||
| 9A | W11222053 | Knob, Control (white) (Replaces: W11130629) |
|
$ 71.36 | |||||
| 9B | W11418244 | Knob, Control (stainless) (Replaces: W11130627) |
|
Immediately | $ 42.90 | ||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | W11111805 | Harness, Main |
|
$ 249.78 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11684785 | Insulation, Cooktop (knob) (Replaces: W11161211) |
|
- | |||||
| NI | 8008P068-60 | Grommet, Wire (black) |
|
$ 15.11 | |||||
| NI | W10324729 | Grommet, Wire (gray) |
|
$ 8.13 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 |
