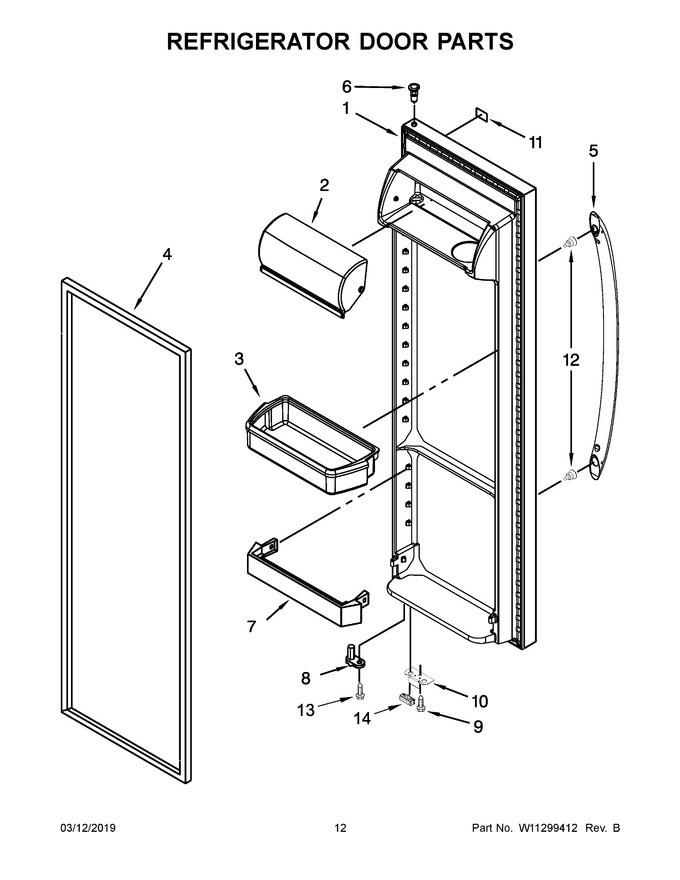

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912118 | Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912118) |
|
$ 780.50 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 144.92 | |||||
| 4 | 2159074 | Gasket, Door (beige) (Replaces: W10912123) |
|
$ 293.13 | |||||
| 5 | W10210942A | Handle (white) (Replaces: W10210942) |
|
$ 116.58 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.34 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 12.41 | |||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 16.80 | ||||
| 11 | W11428492 | Nameplate (white) (Replaces: W11046244) |
|
$ 75.21 | |||||
| 12 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 13 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 13.44 | |||||
| 11A | W11318226 | Nameplate (black) (Replaces: W11046243) |
|
$ 75.93 | |||||
| 11B | W11182143 | Nameplate (stainless) (Replaces: W11046241) |
|
$ 72.24 | |||||
| 13A | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 16.74 | |||||
| 14A | W10407187 | Bumper, Door (black) |
|
$ 43.51 | |||||
| 1A | LW10912126 | Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912126) |
|
$ 762.36 | |||||
| 1B | LW11156545 | Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W11156545) |
|
- | |||||
| 4A | 2159082 | Gasket, Door (black) (Replaces: W10912133) |
|
$ 299.24 | |||||
| 5A | W10210942A | Handle (black) (Replaces: W10210943) |
|
$ 116.58 | |||||
| 5B | WPW10257120 | Handle (grey) (Replaces: W10257120) |
|
$ 53.73 |
