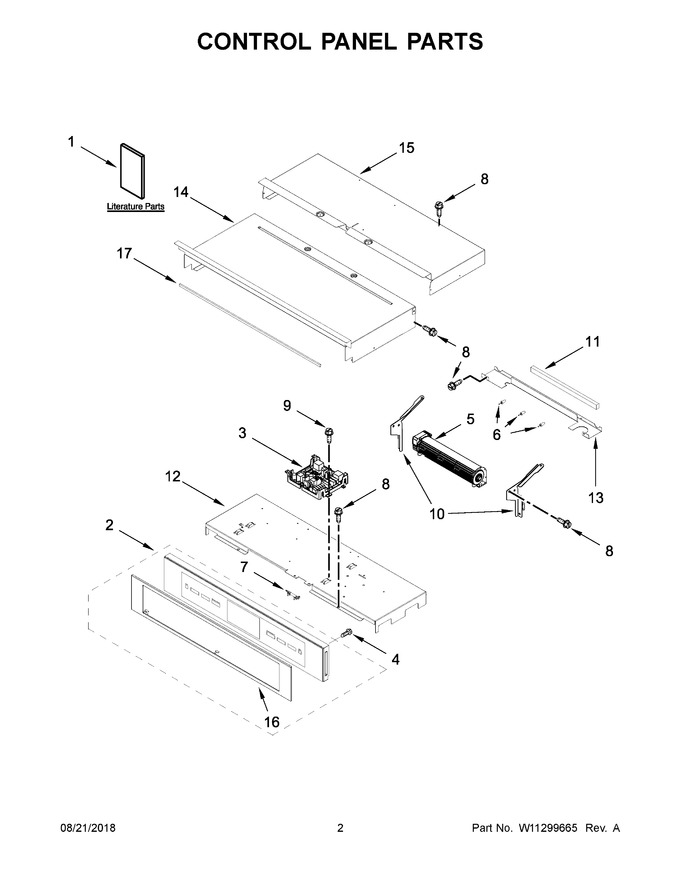

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10754335 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11236888 | Assembly, Control Panel (stainless) (Replaces: W11102216) |
|
$ 1,333.14 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 497.50 | ||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 313.73 | ||||
| 6 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 7 | W11610133 | Fuse, Thermal (Replaces: W10782120) |
|
Immediately | $ 27.74 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 13 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 14 | W10444125 | Chassis, Cover Top Front 30 |
|
- | |||||
| 15 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 16 | W10444132 | Skin, Control Panel (stainless) |
|
$ 273.15 | |||||
| 17 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10768183 | Instructions, Installation |
|
- | |||||
| 1B | W11041085 | Sheet, Tech |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11132990 | Harness, Signal |
|
$ 103.26 | |||||
| NI | W11132996 | Harness, Main |
|
Immediately | $ 348.05 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11229447 | Jumper Tod |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 |
