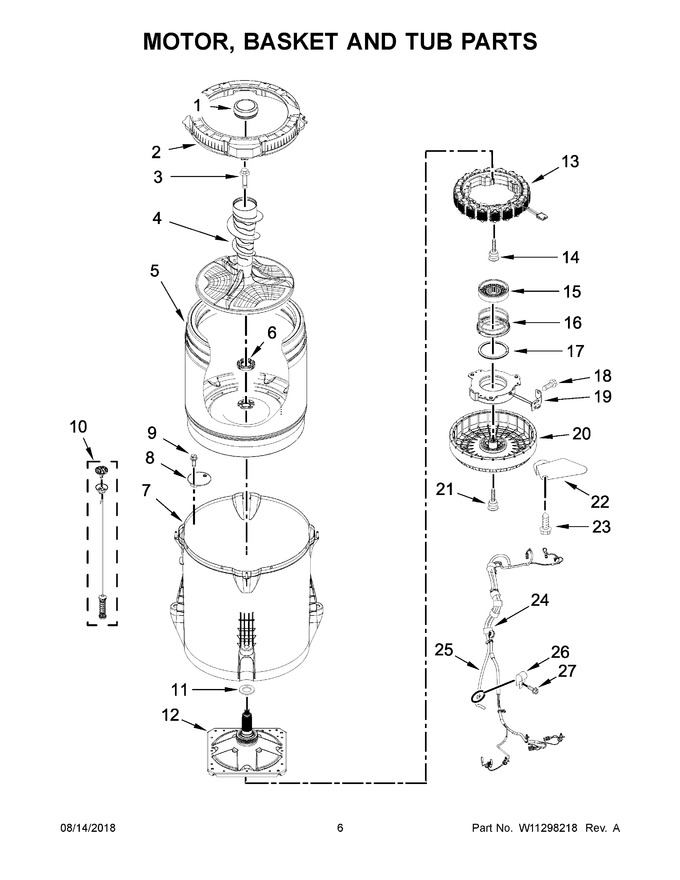

04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10894638 | Cap, Impeller |
|
$ 46.66 | |||||
| 2 | W11190826 | Tub Ring (Replaces: W10578861) |
|
$ 180.14 | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.43 | ||||
| 4 | W11550891 | Agitator (complete) (Replaces: W10821990) |
|
Immediately | $ 102.48 | ||||
| 5 | W10811957 | Basket Assembly (Replaces: W10586078) |
|
$ 460.43 | |||||
| 6 | W10909670 | Nut, Spin Tube (Replaces: W10564013) |
|
Immediately | $ 29.11 | ||||
| 7 | W11219115 | Tub (Replaces: W10512161) |
|
$ 348.38 | |||||
| 8 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 25.32 | ||||
| 9 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 10 | W11130359 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11226784) |
|
Immediately | $ 139.58 | ||||
| 11 | W11032711 | Washer, Thrust (Replaces: W10665342) |
|
Immediately | $ 9.32 | ||||
| 12 | W11393685 | Assembly, Drive (Replaces: W11134159) |
|
Immediately | $ 317.02 | ||||
| 13 | W11195971 | Stator, Motor (Replaces: W10897050) |
|
Immediately | $ 254.73 | ||||
| 14 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 7.31 | ||||
| 15 | W10734521 | Slider (Replaces: W10447975) |
|
Immediately | $ 42.71 | ||||
| 16 | W10734521 | Assembly, Spring (Replaces: W10006494) |
|
Immediately | $ 42.71 | ||||
| 17 | W10734521 | Ring, Snap (Replaces: W10275082) |
|
Immediately | $ 42.71 | ||||
| 18 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 19 | W10754448 | Assembly, Clutch (Replaces: W10817398) |
|
Immediately | $ 151.94 | ||||
| 20 | W11260238 | Rotor, Motor (Replaces: W10897040) |
|
Immediately | $ 157.59 | ||||
| 21 | W10752189 | Screw (Replaces: W10636382) |
|
Immediately | $ 7.97 | ||||
| 22 | W10673062 | Harness Shield - Motor |
|
$ 69.94 | |||||
| 23 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 24 | W11666463 | Harness, Lower (Replaces: W10777953) |
|
$ 120.02 | |||||
| 25 | WP353244 | Hose Pressure Switch (Replaces: W10753364) |
|
Immediately | $ 78.00 | ||||
| 26 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 27 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
