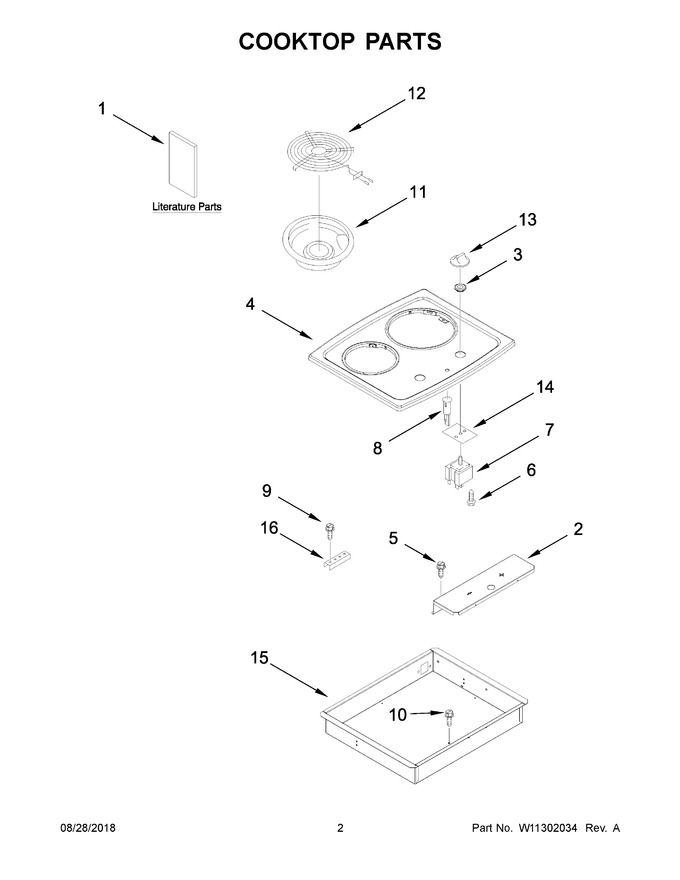

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286310 | Installation, Instructions |
|
- | |||||
| 2 | W10414016 | Bracket, Switch Mounting |
|
Immediately | $ 81.05 | ||||
| 3 | WP8286452 | Grommet (Replaces: 8286452) |
|
$ 8.58 | |||||
| 4 | WPW10140169 | Cooktop (Replaces: W10140169) |
|
$ 374.51 | |||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 7 | WPW10392436 | Switch, Infinite (use With 6" Element) (Replaces: W10392436) |
|
$ 151.26 | |||||
| 8 | WP4456181 | Light, Indicator (Replaces: 4456181) |
|
$ 100.13 | |||||
| 9 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 11 | WPW10196406 | Bowl, Drip (6") (left) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 12 | W11396792 | Element, Coil Heating (1300w) (left) (Replaces: W11199519) |
|
Immediately | $ 112.00 | ||||
| 13 | WP8286043BL | Knob, Control (Replaces: 8286043BL) |
|
$ 21.31 | |||||
| 14 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 15 | W10391085 | Box, Burner |
|
$ 134.40 | |||||
| 16 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 11A | W10196405RW | Bowl, Drip (8") (right) (Replaces: 3195209) |
|
Immediately | $ 19.64 | ||||
| 12A | W11396790 | Element, Coil Heating (2150w) (right) (Replaces: W11199518) |
|
Immediately | $ 113.84 | ||||
| 1A | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1B | W11235895 | Guide, Use And Care |
|
- | |||||
| 7A | WPW10392437 | Switch, Infinite (use With 8" Element) (Replaces: W10392437) |
|
$ 151.38 | |||||
| NI | 4455805 | Grommet, Harness |
|
- | |||||
| NI | WP90767 | Screw (for Main Wiring Harness) (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| NI | W11676902 | Harness, Wiring (main) (Replaces: W11172415) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | W11190492 | Harness, Wiring (includes Conduit) |
|
- |
