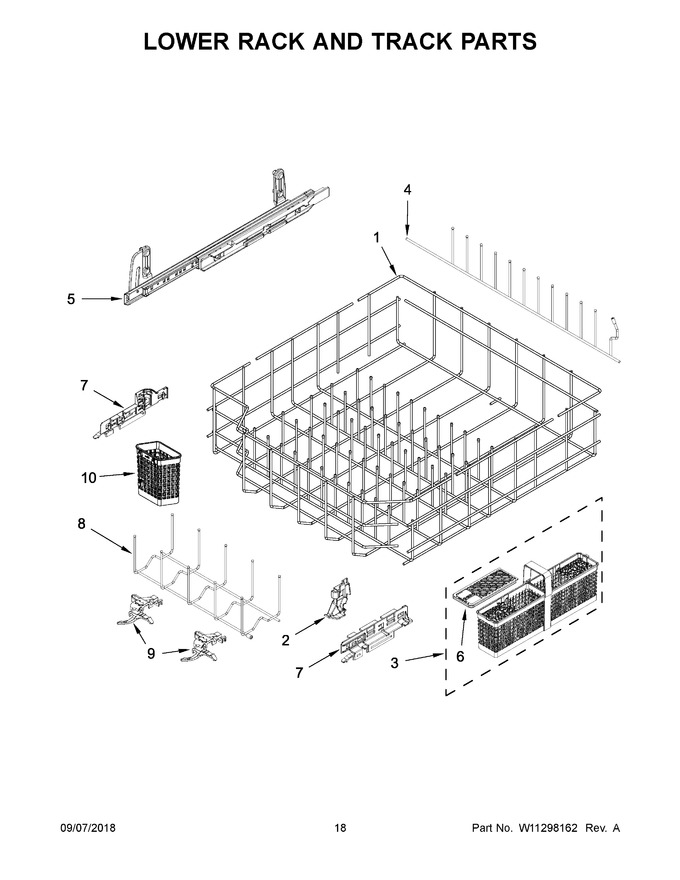

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11838895		Dishrack, Lower   (Replaces: W10713334)				$ 159.66
2	W11193827		Support, Front Ski (left Hand)   (Replaces: W10473813)				$ 21.92
3	W11767095		Basket Assembly, Silverware   (Replaces: W10473836)			Immediately	$ 66.50
4	W10728160		Tine Row, Fold Down   (Replaces: W10056272)			Immediately	$ 48.01
5	W10822165		Track Assembly (left Hand)   (Replaces: W10781307)			Immediately	$ 167.04
6	WPW10473835		Lid, Silverware Basket   (Replaces: W10473835)				$ 25.29
7	WPW10473807		Support, Rear Carriage (left Hand)   (Replaces: W10473807)			Immediately	$ 32.31
8	W10554952		Tine Row, Sliding				$ 115.02
9	W11213333		Retainer, Sliding Tine Row   (Replaces: W10713283)				$ 26.37
10	WPW10482109		Basket, Utensil   (Replaces: W10482109)				$ 84.47
2A	W11197023		Support, Front Ski (right Hand)   (Replaces: W10473817)				$ 30.58
5A	W10822166		Track Assembly (right Hand)   (Replaces: W10781311)			Immediately	$ 165.17
7A	WPW10473809		Support, Rear Carriage (right Hand)   (Replaces: W10473809)			Immediately	$ 31.73

    View Diagram in Separate Window       Print Part List
