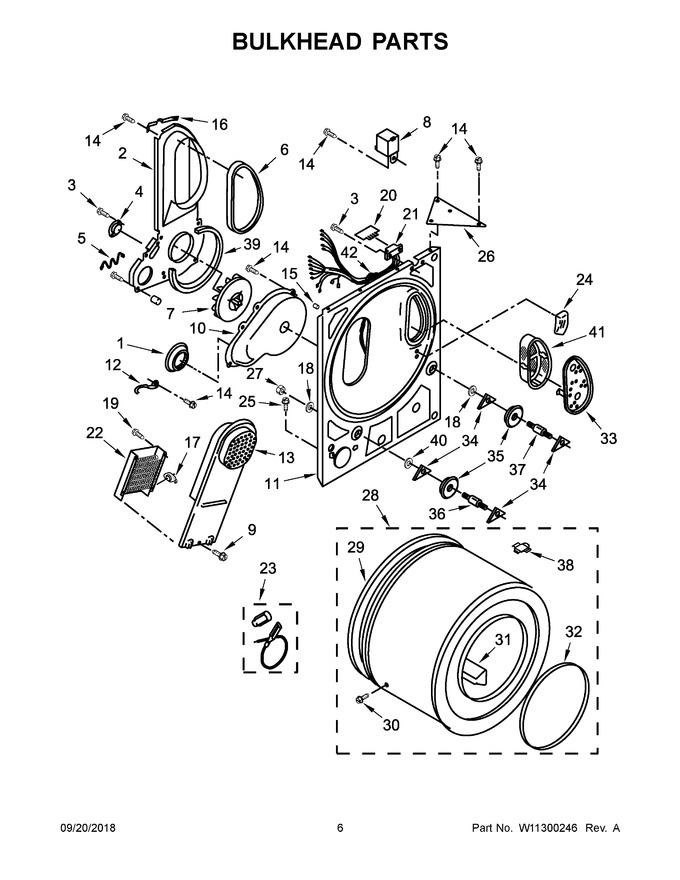

04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 21.06 | |||||
| 2 | 696545 | Air Duct Assembly |
|
- | |||||
| 3 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 4 | AT022 | Thermostat (145~f) (Replaces: 660074) |
|
Immediately | $ 27.28 | ||||
| 5 | 345965 | Guard, Exhaust |
|
$ 71.24 | |||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 7 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 123.02 | ||||
| 8 | W10503559 | Buzzer, Mini |
|
$ 30.00 | |||||
| 9 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 10 | 696419 | Scroll, Fan |
|
$ 129.29 | |||||
| 11 | 279848 | Bulkhead (Replaces: 3394204) |
|
$ 328.30 | |||||
| 12 | 279771 | Clip, Heater Box (Replaces: 3398161) |
|
$ 13.55 | |||||
| 13 | WP3401380 | Box, Heater (Replaces: 3401380) |
|
Immediately | $ 265.73 | ||||
| 14 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 15 | W10491983 | Cap (Replaces: 359702) |
|
- | |||||
| 16 | 345396 | Clip (Replaces: 9830393) |
|
- | |||||
| 17 | WP3404153 | Thermostat (180~f) (Replaces: 3404153) |
|
$ 125.20 | |||||
| 18 | WP348197 | Washer (Replaces: 348197) |
|
$ 6.80 | |||||
| 19 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 20 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 296.94 | ||||
| 21 | 3391885 | Terminal |
|
$ 81.65 | |||||
| 22 | WP3403591 | Element, Heater (Replaces: 3403591) |
|
$ 276.15 | |||||
| 23 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 24 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 143.65 | |||||
| 25 | WP3390631 | Screw, Tapping (Replaces: 342202) |
|
$ 7.43 | |||||
| 26 | 345325 | Gusset |
|
- | |||||
| 27 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 7.78 | ||||
| 28 | 3391834 | Drum Assembly Complete (Replaces: 695943) |
|
$ 335.26 | |||||
| 29 | 279735 | Seal, Drum Rear (Replaces: 345648) |
|
Immediately | $ 98.79 | ||||
| 30 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 31 | 00685207 | Baffle, Drum (Replaces: 685207) |
|
$ 293.40 | |||||
| 32 | WP3394508 | Ring, Bearing (Replaces: 3394508) |
|
$ 118.67 | |||||
| 33 | W10828351 | Cover, Lint Screen Outlet (Replaces: 8531966) |
|
Immediately | $ 62.64 | ||||
| 34 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 35 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 26.58 | ||||
| 36 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
Immediately | $ 65.44 | ||||
| 37 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
Immediately | $ 51.09 | ||||
| 38 | 8066086 | Plug, Drum Hole |
|
$ 10.16 | |||||
| 39 | 8066094 | Seal, Fan Scroll |
|
$ 8.38 | |||||
| 40 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.07 | |||||
| 41 | W10828351 | Lint Screen (Replaces: 8531964) |
|
Immediately | $ 62.64 | ||||
| 42 | W11368311 | Harness, Wiring (Replaces: W10488664) |
|
$ 210.56 |
