SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

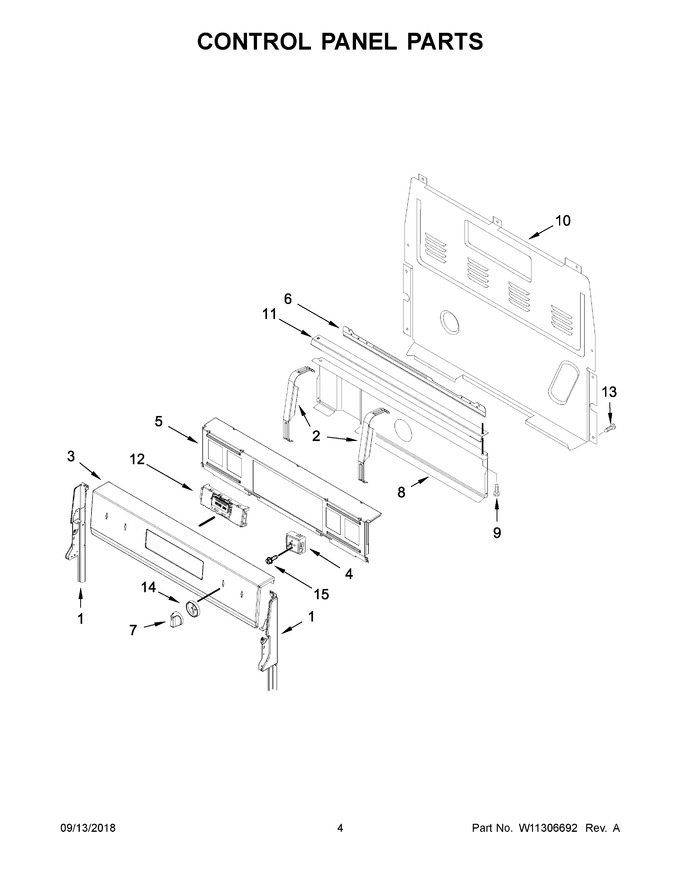

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 312.99
2	W10856361		Bracket, Control		Appelez-nous	-
3	W11105836		Console (black)   (Replaces: W10869983)		Appelez-nous	-
4	W10857622		Switch, Infinite (left Front & Right Front)   (Replaces: W10437092)			Immediately	$ 215.89
5	W10901802		Panel, Backer				$ 87.11
6	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 200.19
7	W11715915		Knob (black)   (Replaces: W10905965)				$ 38.21
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W11536793		Electronic, Control (lcx) (black)   (Replaces: W10885938)			Immediately	$ 268.30
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	W10905964		Bezel (black)		Appelez-nous	-
14A	W10912200		Bezel (white)				$ 54.95
1A	W11213292		Endcap (black (right))				$ 64.49
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 94.23
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 94.23
3A	W11105827		Console (white)   (Replaces: W10869984)				$ 463.64
4A	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
4B	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
6A	W11051311		Bracket, Eye Brow (white)				$ 83.38
7A	W11613600		Knob (white)   (Replaces: W11027257)			Immediately	$ 43.29

    View Diagram in Separate Window       Print Part List
