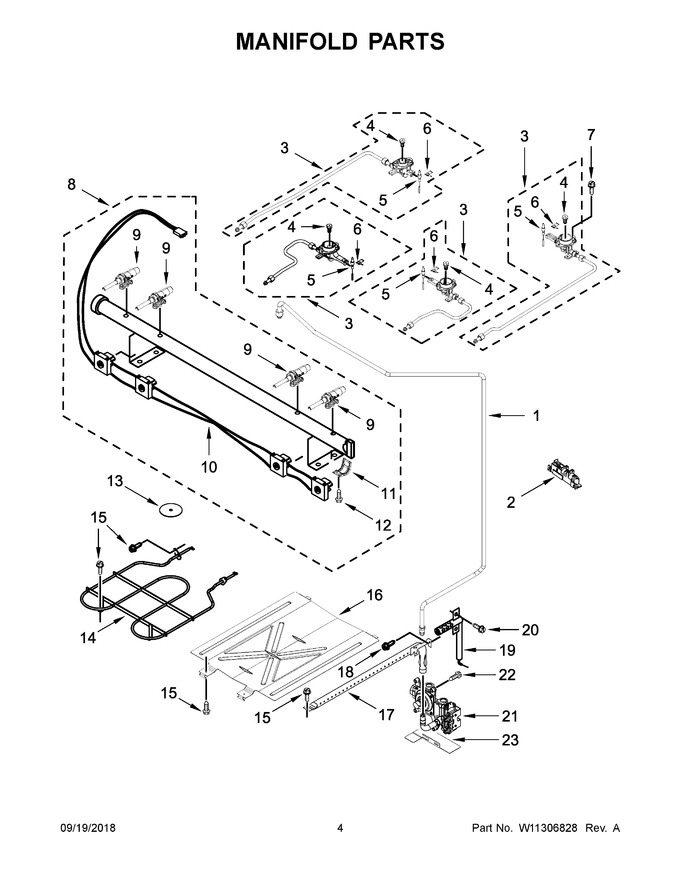

03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804030		Tubing (manifold To Regulator)		Appelez-nous	-
2	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 290.17
3	W11035644		Assembly, Orifice Holder (15k) (left Front)   (Replaces: W10827775)				$ 90.12
4	W10849717		Orifice (left Front, Right Front)			Immediately	$ 84.11
5	W11661929		Electrode, Burner (left Front)   (Replaces: W10669526)			Immediately	$ 45.19
6	W11684564		Spring, Electrode   (Replaces: W10827923)			Immediately	$ 11.39
7	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
8	W10902172		Assembly, Manifold		Appelez-nous	-
9	W11690141		Valve, Gas (left Front & Right Front)   (Replaces: W10901555)				$ 64.52
10	W10834787		Harness, Switch				$ 189.79
11	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 20.48
12	W11666001		Screw   (Replaces: W10246216)				$ 12.85
13	W10140571		Seal, Switch Shaft				$ 6.93
14	W11847084		Element, Broiler   (Replaces: W10714060)				$ 106.10
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
16	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 228.17
17	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 203.46
18	W11684507		Screw   (Replaces: 3196385)				$ 12.84
19	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 43.26
20	3196265		Screw		Appelez-nous	-
21	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 354.29
22	W11684512		Screw   (Replaces: 3400080)				$ 13.33
23	W10224921		Bracket, Aegis		Appelez-nous	-
3A	W10827780		Assembly, Orifice Holder (9.5k) (left Rear)				$ 97.21
3B	W11045823		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10827778)		Appelez-nous	-
3C	W10827779		Assembly, Orifice Holder (5k) (right Rear)				$ 97.21
4A	W11677633		Orifice (left Rear)   (Replaces: W10849719)				$ 89.24
4B	W10849714		Orifice (right Rear)				$ 84.11
5A	W11666003		Electrode, Burner (left Rear)   (Replaces: W10669525)				$ 43.57
5B	W11643126		Electrode, Burner (right Front)   (Replaces: W10669524)			Immediately	$ 47.89
5C	W11661897		Electrode, Burner (right Rear)   (Replaces: W10669523)				$ 43.52
9A	W10901556		Valve, Gas (left Rear)				$ 259.15
9B	W10901554		Valve, Gas (right Rear)				$ 259.15
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.57
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10838119		Spuds, Lp Gas				$ 158.17
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 46.90
NI	3196896		Clip, Wire		Appelez-nous	-
