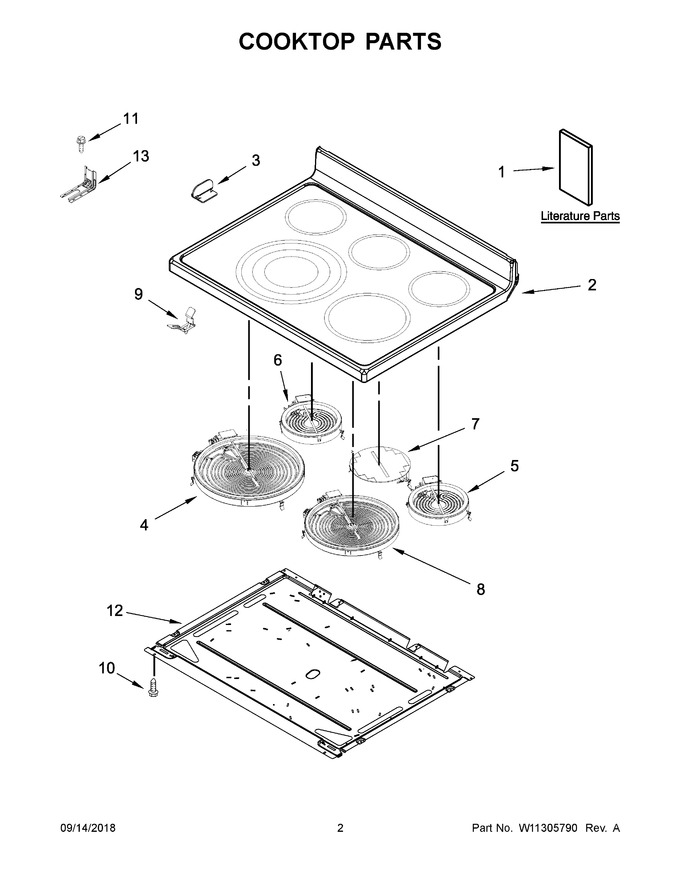

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841336		Guide, Use & Care (english)		Appelez-nous	-
2	W10872562		Cooktop (black)   (Replaces: W10828424)			Immediately	$ 729.90
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 348.12
5	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 151.61
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 119.66
8	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 132.01
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
1A	W10843071		Sheet, Tech (english)		Appelez-nous	-
1B	W11047681		Instructions, Installation		Appelez-nous	-
1C	W10400064		Guide, Quick Start (english)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11501964		Harness, Main   (Replaces: W11134661)		Appelez-nous	-
NI	W11190446		Harness, Cooktop (left)		Appelez-nous	-
NI	W11134550		Harness, Cooktop (right)				$ 206.01
NI	W11212183		Harness, Sensor				$ 212.08
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.98
NI	W11134592		Harness, Warm Zone				$ 105.53
