01 - Cover Sheet

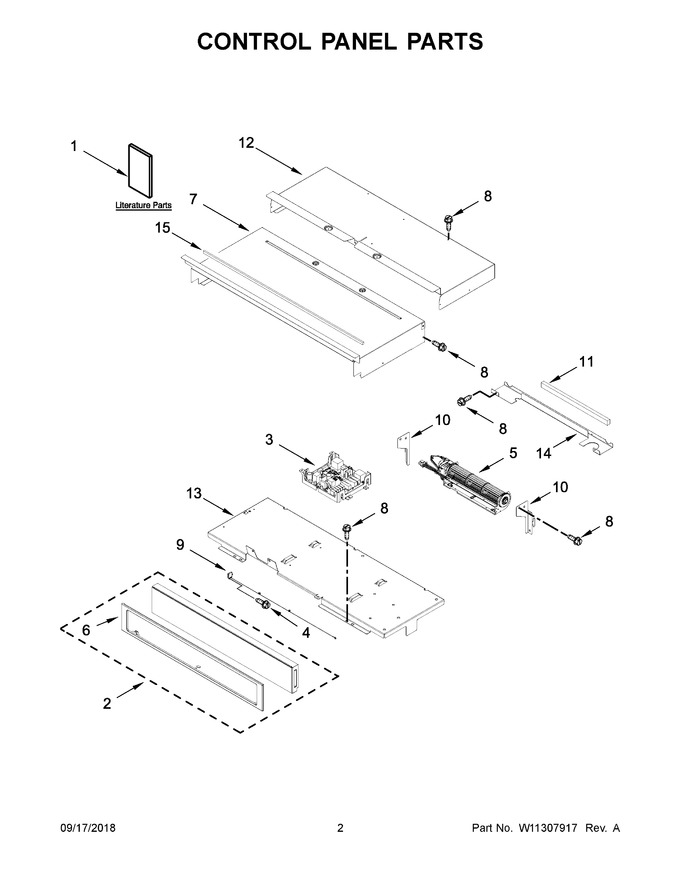

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11129956 | Instructions, Installation |
|
- | |||||
| 2 | W11428592 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105047) |
|
$ 828.44 | |||||
| 3 | W11261165 | Appliance Manager, Copernicus (with Power Supply) (Replaces: W11253186) |
|
Immediately | $ 444.58 | ||||
| 4 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 389.58 | ||||
| 6 | W11156404 | Skin, Control Panel (stainless) (Replaces: W10893983) |
|
- | |||||
| 7 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 124.93 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 95.45 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 12 | W10904156 | Chassis, Cover Top Back 30 |
|
- | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11097840 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11220325 | Guide, Use & Care |
|
- | |||||
| 1C | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W11108419 | Sheet, Tech |
|
- | |||||
| 1E | W11108424 | Diagram, Wiring |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11233570 | Harness, Console |
|
Immediately | $ 211.19 | ||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11225375 | Harness, Signal |
|
$ 105.98 | |||||
| NI | W11225374 | Harness, Main |
|
$ 224.70 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.47 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 |
