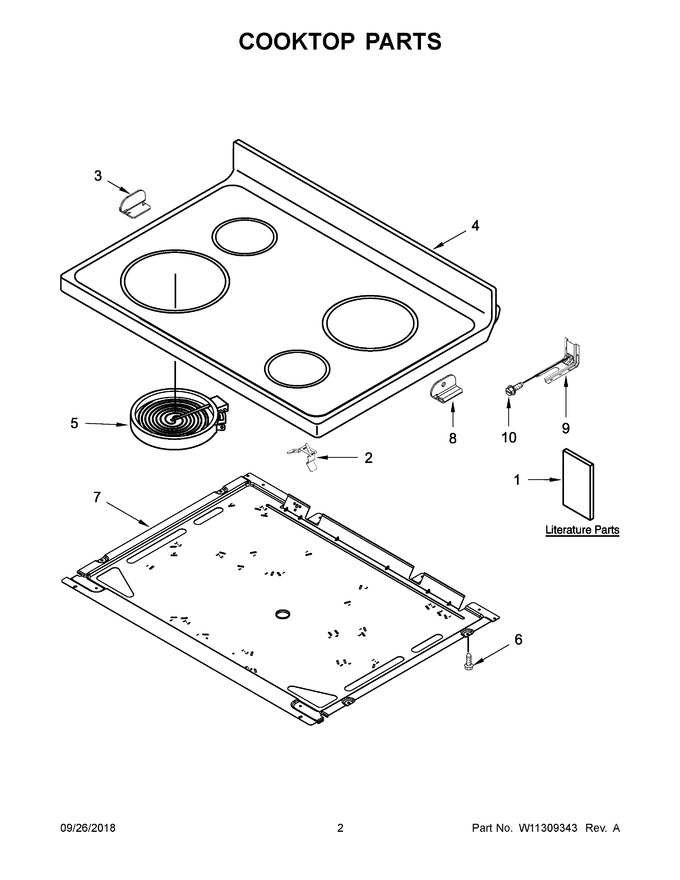

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11047681		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W10245805		Cooktop (black)   (Replaces: W10380657)				$ 498.45
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 132.01
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
8	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
9	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
10	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
1A	W10719733		Owner's Manual		Appelez-nous	-
1B	W10432689		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
4A	W10472020		Cooktop (white)   (Replaces: W10380656)			Immediately	$ 590.08
5A	W11047722		Element (2500w) (right Front)   (Replaces: W10248262)			Immediately	$ 119.21
5B	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
NI	313660		Miscellaneous Parts, Clip, Ground Wire		Appelez-nous	-
NI	W11416847		Miscellaneous Parts, Harness, Main   (Replaces: W11219895)		Appelez-nous	-
NI	W11134601		Miscellaneous Parts, Harness, Cooktop (left)				$ 173.39
NI	W11134602		Miscellaneous Parts, Harness, Cooktop (right)				$ 172.54
NI	W11232223		Miscellaneous Parts, Harness, Door Switch Sensor				$ 194.44
