01 - Cover Sheet
02 - Cooktop Parts

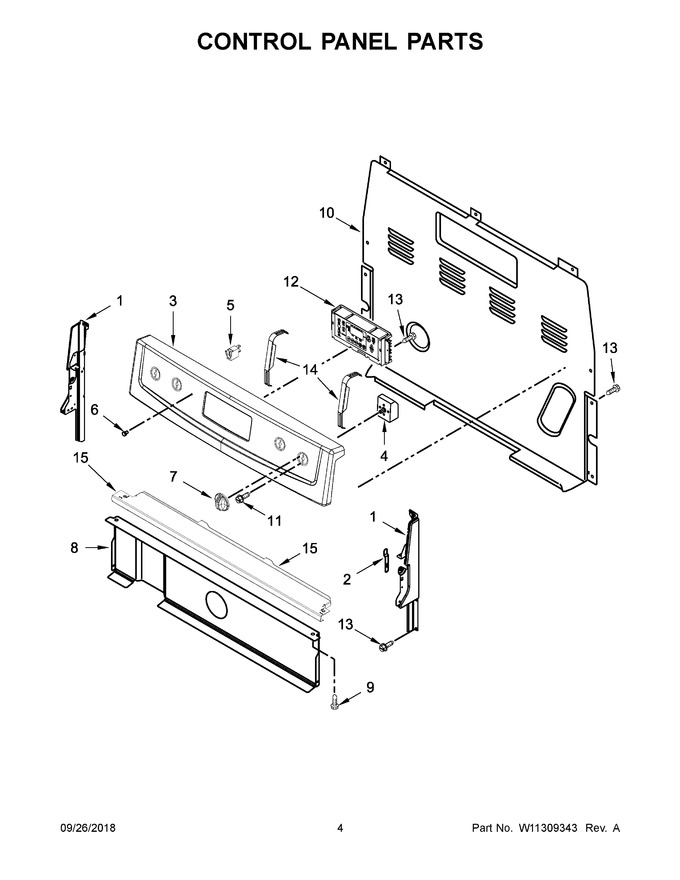

03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 138.45 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W11231943 | Panel, Backguard (black) (Replaces: W11135549) |
|
$ 116.65 | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10836470 | Knob, Infinite (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 12 | W11122555 | Control, Range (black) (Replaces: W10887901) |
|
$ 452.69 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 15 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12A | W11122557 | Control, Range (white) (Replaces: W10887899) |
|
Immediately | $ 452.69 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 40.65 | |||||
| 1B | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 38.21 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 54.75 | |||||
| 3A | W11135550 | Panel, Backguard (white) |
|
- | |||||
| 4A | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4B | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 7A | W10853029 | Knob, Infinite (white) (Replaces: W10676214) |
|
Immediately | $ 34.44 |
