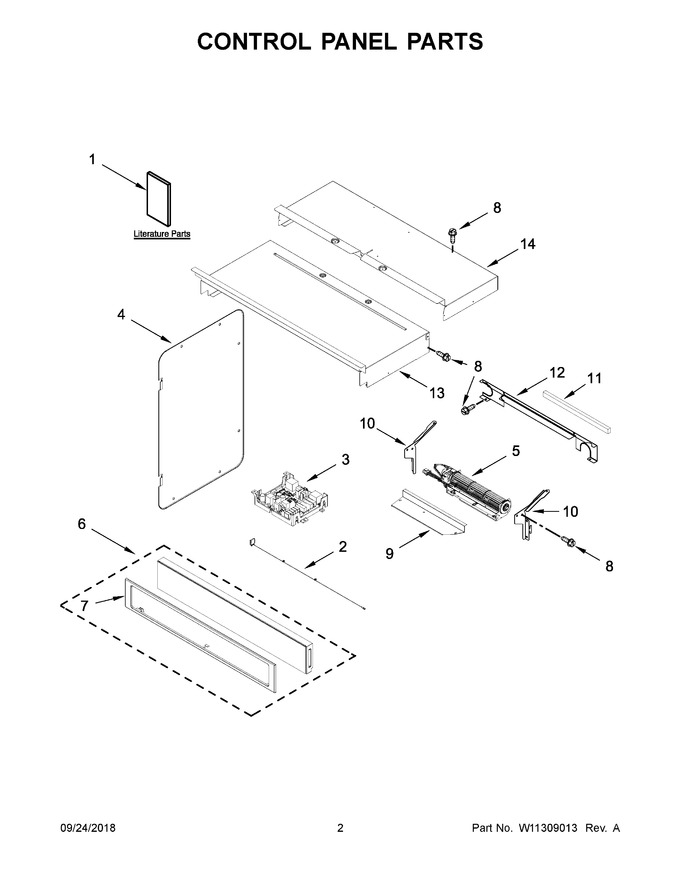

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11220324 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 95.45 | |||||
| 3 | W11261165 | Appliance Manager, Copernicus (with Power Supply) (Replaces: W11253186) |
|
Immediately | $ 444.58 | ||||
| 4 | W10655467 | Chassis, Combo Side |
|
$ 74.72 | |||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 389.58 | ||||
| 6 | W11428589 | Assembly, Control Panel (includes Overlay) (sunset Bronze) (Replaces: W11105054) |
|
$ 828.33 | |||||
| 7 | W11162715 | Skin, Control Panel (sunset Bronze) (Replaces: W10892169) |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 12 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 13 | W10318158 | Chassis, Cover Top Front 30 |
|
- | |||||
| 14 | W10588732 | Chassis, Cover Top Back 30 |
|
$ 203.27 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11108505 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1B | W11129957 | Instructions, Installation |
|
- | |||||
| 1C | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W11108420 | Sheet, Tech |
|
- | |||||
| 1E | W11108426 | Diagram, Wiring |
|
- | |||||
| 6A | W11428588 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105052) |
|
$ 828.14 | |||||
| 7A | W11156404 | Skin, Control Panel (stainless) (Replaces: W10893983) |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11356990 | Harness, Communication (Replaces: W11233529) |
|
$ 201.99 | |||||
| NI | W11356991 | Harness, Ground Console Combo (Replaces: W11233569) |
|
- | |||||
| NI | W11233537 | Jumper Harness, Communication |
|
$ 172.54 | |||||
| NI | W11449277 | Harness, Interlock (Replaces: W10720308) |
|
Immediately | $ 140.42 | ||||
| NI | W10874060 | Harness, Inverter |
|
$ 133.84 | |||||
| NI | W11356954 | Harness, Fan & Turntable (Replaces: W10874059) |
|
$ 133.88 | |||||
| NI | W11314401 | Harness, Signal (Replaces: W11225392) |
|
- | |||||
| NI | W11314401 | Harness, Main (Replaces: W11225386) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.47 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11356977 | Harness, Cable Tree Assembly (Replaces: W10889134) |
|
$ 76.56 |
