01 - Cover Sheet


02 - Control Panel Parts

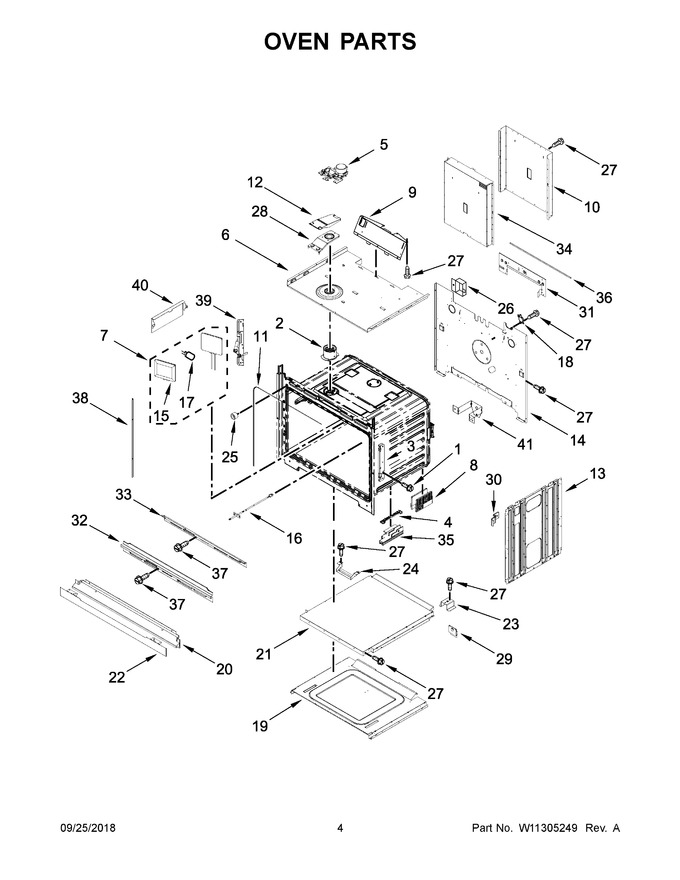

03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 22.99
3	W11613828		Receiver, Hinge   (Replaces: W11044775)			Immediately	$ 51.74
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 15.53
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 275.81
6	W10904158		Top, Chassis		Appelez-nous	-
7	W11245268		Assembly, Oven Light   (Replaces: W11198684)				$ 93.79
8	W10821321		Foot, Base   (Replaces: W10618101)				$ 30.16
9	W10904163		Deflector, Blower			Immediately	$ 152.81
10	W10542857		Duct, Chassis Back (lower)				$ 105.99
11	W11623080		Gasket   (Replaces: W10739089)			Immediately	$ 65.12
12	W10616810		Cover, Vent Exhaust				$ 62.96
13	W10663556		Side, Chassis (left)		Appelez-nous	-
14	W10904160		Back, Chassis		Appelez-nous	-
15	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 86.70
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 143.11
17	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 103.05
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
19	W11238787		Base, Chassis   (Replaces: W10834867)				$ 314.69
20	W10869571		Assembly, Bottom Vent (stainless)			Immediately	$ 232.43
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 198.05
22	WPW10327377		Trim, Bottom Vent (stainless)   (Replaces: W10327377)				$ 162.07
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.91
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
28	W10616809		Base, Vent Exhaust				$ 29.02
29	W10834286		Spacer, Center				$ 20.79
30	W10834501		Spacers, Front				$ 14.35
31	W10904155		Bracket, U-shape		Appelez-nous	-
32	W10283040		Vent, Center 30				$ 123.08
33	W10283036		Vent, Top 30				$ 63.87
34	W10318196		Duct, Chassis Back (upper)				$ 197.00
35	W10848812		Foot, Front (left)   (Replaces: W10618103)				$ 29.44
36	W10728475		Gasket, Rubber				$ 34.32
37	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.80
38	W10536161		Cover, Side Trim (left)   (Replaces: W10327369)				$ 45.56
39	W11045086		Receiver, Slow Close Hinge			Immediately	$ 115.94
40	W11034940		Shield, Slow Close Hinge				$ 76.48
41	W11027314		Hat Bracket, Vent		Appelez-nous	-
13A	W10318190		Side, Chassis (right)				$ 117.20
35A	W10848812		Foot, Front (right)   (Replaces: W10618104)				$ 29.44
38A	W10536161		Cover, Side Trim (right)   (Replaces: W10327368)				$ 45.56
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11685004		Insulation, Control Knob   (Replaces: W10464568)		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 112.38
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 111.64
