01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)

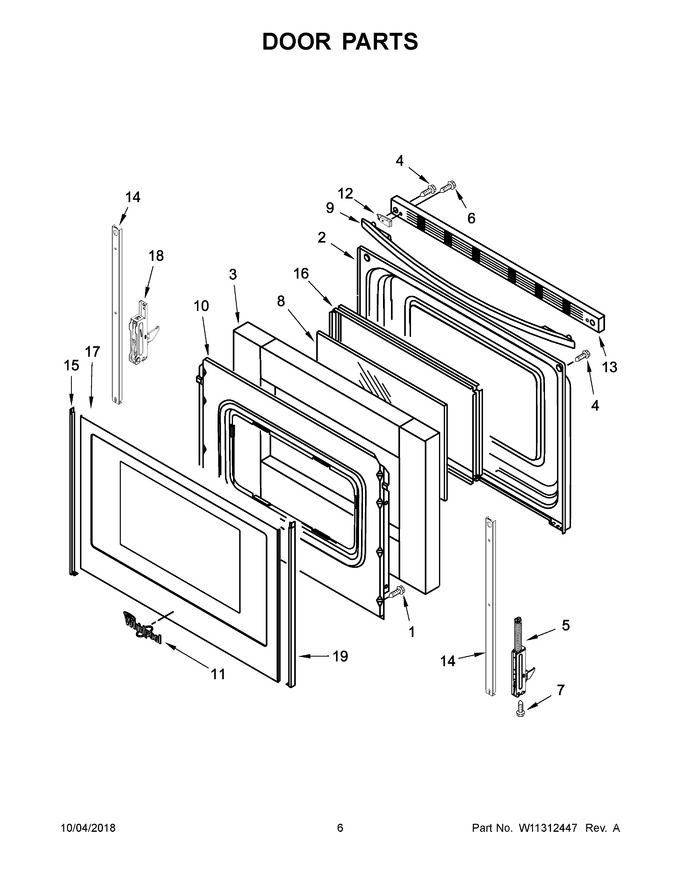

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.31
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
5	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 60.30
6	W10896982		Screw   (Replaces: W10465158)				$ 7.56
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
8	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
9	WPW10618239		Handle, Oven Door (stainless)   (Replaces: W10618239)			Immediately	$ 180.39
10	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 209.98
11	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 58.63
12	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 72.68
13	WPW10310922		Trim, Oven Door Vent (black)   (Replaces: W10310922)			Immediately	$ 165.73
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 24.91
15	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 51.80
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
17	W11219379		Glass Assembly, Outer Door (stainless)   (Replaces: W11169624)				$ 407.62
18	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 60.30
19	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 68.96
