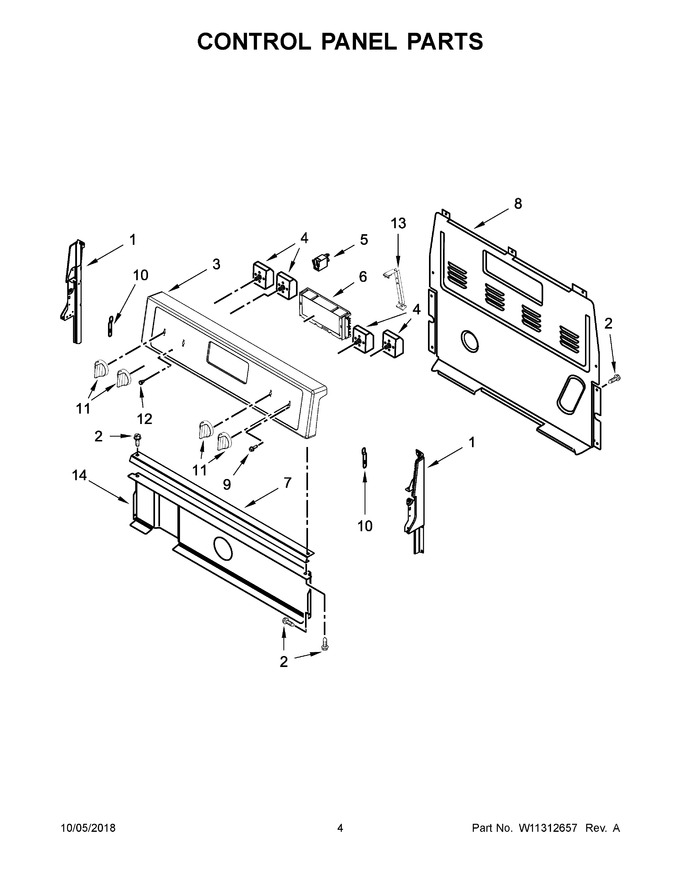

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)			Immediately	$ 138.45
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
3	W11135505		Panel, Console (black)		Appelez-nous	-
4	WP3149400		Switch, Infinite (orange) (left Front And Right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 91.76
6	W11122531		Control, Electric (lcc 190) (black)   (Replaces: W10887924)				$ 425.07
7	W10525121		Bracket, Console Mounting				$ 88.97
8	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	3196200		Clip, Spring				$ 9.41
11	W10836470		Assembly, Control Knob (black)   (Replaces: W10676213)			Immediately	$ 34.28
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
13	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
14	W10134247		Shield, Heat			Immediately	$ 322.94
11A	W10853029		Assembly, Control Knob (white)   (Replaces: W10676214)			Immediately	$ 34.44
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)			Immediately	$ 40.65
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 38.21
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 54.75
3A	W11135506		Panel, Console (white)		Appelez-nous	-
4A	WP3148952		Switch, Infinite (yellow) (left Rear And Right Front)   (Replaces: 3148952)			Immediately	$ 62.56
6A	W11122533		Control, Electric (lcc 190) (white)   (Replaces: W10887923)				$ 452.69
