01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

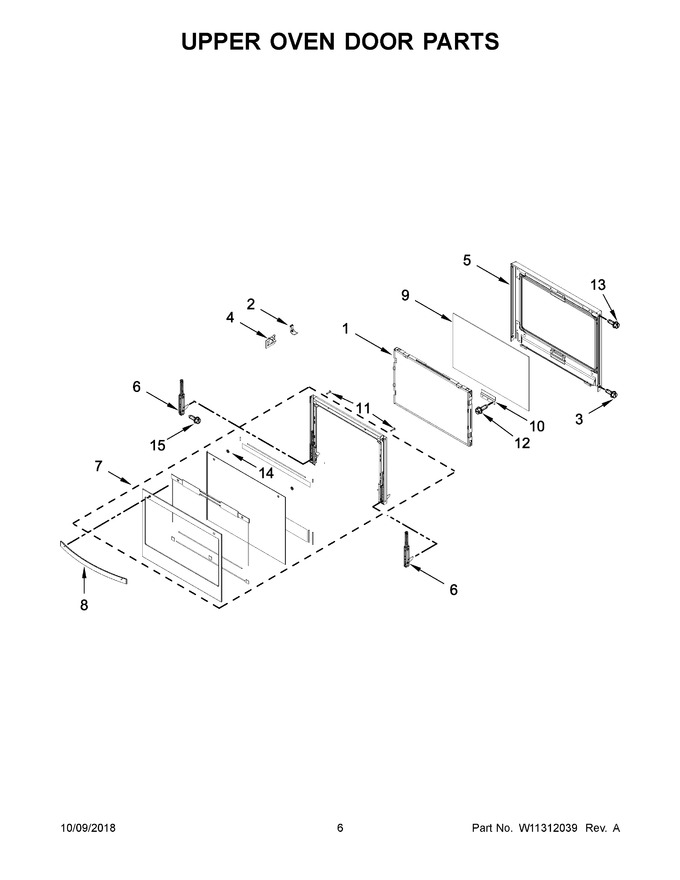

04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 264.66 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 149.18 | |||||
| 3 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.07 | |||||
| 4 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 158.53 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 303.61 | |||||
| 6 | W11045550 | Hinge, Slow Close Door |
|
$ 97.44 | |||||
| 7 | W11111694 | Assembly, Door Glass (stainless) (Replaces: W10866268) |
|
$ 449.17 | |||||
| 8 | W11113204 | Assembly, Door Handle (stainless) (Replaces: W10880280) |
|
$ 170.02 | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 187.70 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 147.47 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.80 | ||||
| 14 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 15 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 7A | W11111696 | Assembly, Door Glass (black Stainless) (Replaces: W11028412) |
|
$ 437.77 | |||||
| 8A | W10903344 | Assembly, Door Handle (black Stainless) |
|
- |
