SELECT A DIAGRAM
01 - Cover Sheet

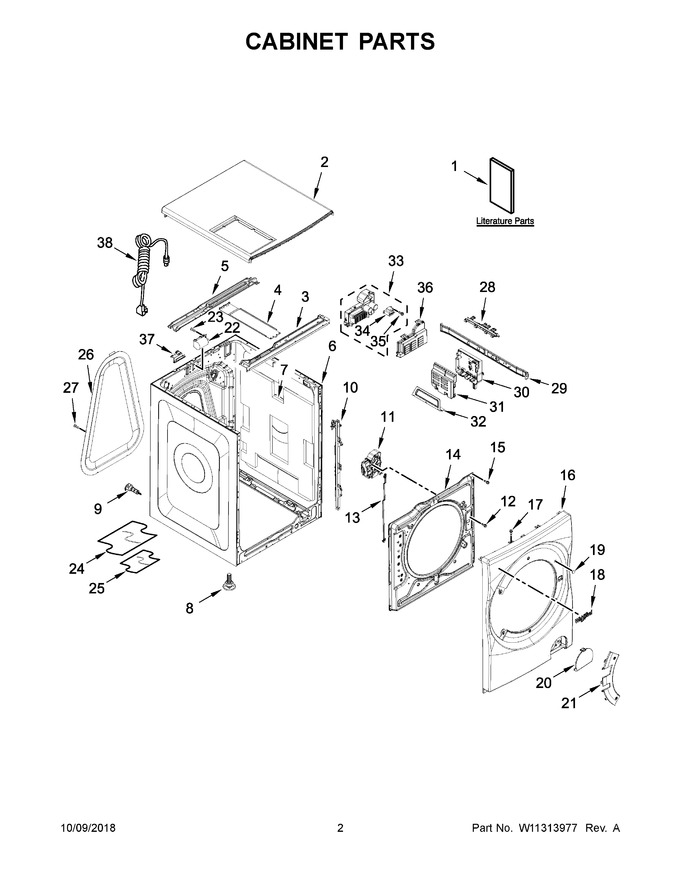

02 - Cabinet Parts
03 - Hmi And Door Parts
04 - Pump Parts
05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11114293 | Use And Care Guide |
|
- | |||||
| 2 | W11283711 | Top (cashmere) (Replaces: W11243720) |
|
- | |||||
| 3 | W11243651 | Brace, Top Front |
|
- | |||||
| 4 | W11243654 | Brace, Rear To Front Support |
|
- | |||||
| 5 | W11243662 | Brace, Top Rear |
|
- | |||||
| 6 | W11243641 | Cabinet (cashmere) |
|
- | |||||
| 7 | W11269318 | Pad, Sound (Replaces: W11268754) |
|
- | |||||
| 8 | W11643138 | Foot, Leveling (Replaces: W10644894) |
|
$ 12.30 | |||||
| 9 | W11260745 | Bolt, Transport (set Of 4) (Replaces: W11256748) |
|
- | |||||
| 10 | W11301538 | Channel, Cable (Replaces: W11300502) |
|
- | |||||
| 11 | W11261091 | Door Lock (Replaces: W11243682) |
|
Immediately | $ 269.24 | ||||
| 12 | W10869499 | Screw |
|
- | |||||
| 13 | W11243684 | Cable, Emergency Door Lock Release |
|
- | |||||
| 14 | W11260725 | Bulkhead, Front (Replaces: W11243649) |
|
- | |||||
| 15 | W11174491 | Screw |
|
- | |||||
| 16 | W11256584 | Panel, Front (cashmere) |
|
Immediately | $ 344.41 | ||||
| 17 | W10204809 | Screw |
|
- | |||||
| 18 | W11178521 | Nameplate (whirlpool) (Replaces: W11282441) |
|
Immediately | $ 56.82 | ||||
| 19 | W11289899 | Cover, Screw (front Panel) (Replaces: W11256587) |
|
- | |||||
| 20 | W11256585 | Cover, Pump Filter |
|
$ 42.29 | |||||
| 21 | W11256586 | Cover, Door Hinge |
|
- | |||||
| 22 | W11243674 | Filter, Rfi |
|
$ 101.86 | |||||
| 23 | W11176555 | Screw |
|
- | |||||
| 24 | W11296978 | Protector, Harness Wrap (Replaces: W11256577) |
|
- | |||||
| 25 | W11269103 | Cloth, Harness Protector (Replaces: W11268606) |
|
- | |||||
| 26 | W11260728 | Panel, Rear (Replaces: W11243668) |
|
- | |||||
| 27 | W11287194 | Screw (Replaces: W11286886) |
|
- | |||||
| 28 | W11260737 | Retainer, Lower Harness (Replaces: W11256553) |
|
- | |||||
| 29 | W11243666 | Bracket, Acu |
|
- | |||||
| 30 | W11260742 | Assembly, Acu (complete) (Replaces: W11243686) |
|
Immediately | $ 479.76 | ||||
| 31 | W11243688 | Cover, Acu |
|
- | |||||
| 32 | W11269102 | Guard, Acu (Replaces: W11280160) |
|
- | |||||
| 33 | W11281876 | Assembly, Mcu (includes Mcu Line Inductor And Screw) |
|
$ 478.79 | |||||
| 34 | W11296988 | Inductor, Mcu Line (Replaces: W11243707) |
|
- | |||||
| 35 | W11296992 | Screw (Replaces: W10869502) |
|
- | |||||
| 36 | W11243708 | Cover, Mcu |
|
- | |||||
| 37 | W11243675 | Retainer, Inlet Valve - Dispenser Harness |
|
- | |||||
| 38 | W11289894 | Power Cord (Replaces: W11288725) |
|
$ 132.17 | |||||
| 1A | W11132544 | Quick Start Guide |
|
- | |||||
| 1B | W11236406 | Energy Guide |
|
- | |||||
| 1C | W11300744 | Tech Sheet |
|
- | |||||
| 1D | W11025407 | Wiring Diagram |
|
- | |||||
| NI | W11256575 | Harness, Inlet Valve - Dispenser |
|
$ 232.71 | |||||
| NI | W11266434 | Harness, Main (connects Hmi, Door Locks, Water Heater) (Replaces: W11256557) |
|
$ 249.64 | |||||
| NI | W11256574 | Harness, Control (connects Mcu, Drum Gnd, Ntc Sensor) |
|
$ 235.75 |
