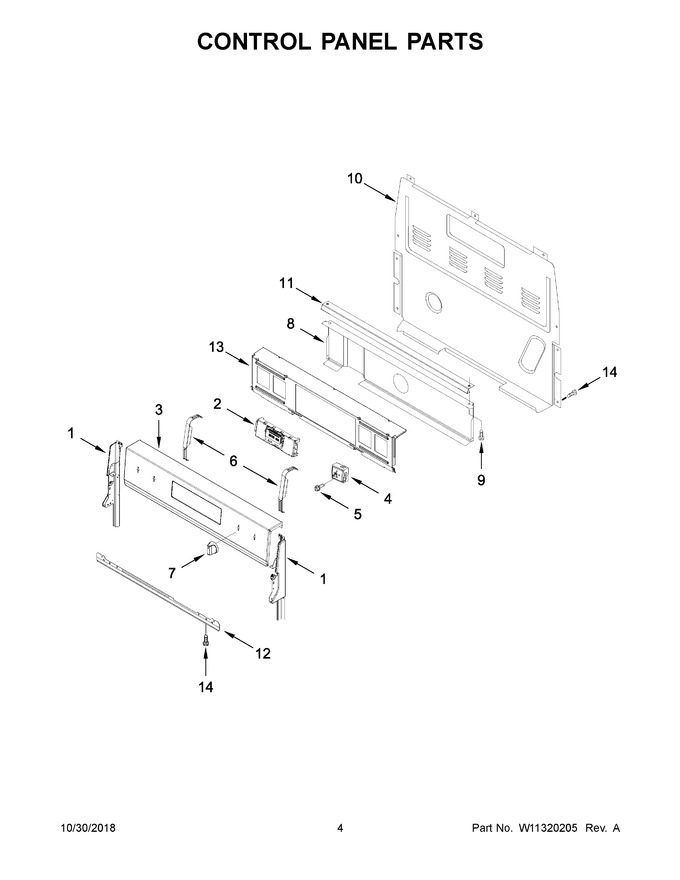

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 312.99
2	W11528249		Control, Electronic (lcx) (black)   (Replaces: W11204529)			Immediately	$ 262.84
3	W11182819		Console, Assembly (black)   (Replaces: W11089991)				$ 434.07
4	WPW10434452		Switch, Infinite (dual) (left Front And Right Front)   (Replaces: W10434452)			Immediately	$ 126.76
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
6	W10856361		Bracket, Control		Appelez-nous	-
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 72.02
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 200.19
13	W10901802		Panel, Backer				$ 87.11
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12A	W11051311		Bracket, Eye Brow (white)				$ 83.38
1A	W11213292		Endcap (black (right))				$ 64.49
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 94.23
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 94.23
2A	W11546095		Control, Electronic (lcx) (white)   (Replaces: W11204530)			Immediately	$ 330.07
3A	W11182818		Console, Assembly (white)   (Replaces: W11089992)				$ 470.39
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 49.03
7A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 19.39
