SELECT A DIAGRAM

01 - Cover Sheet

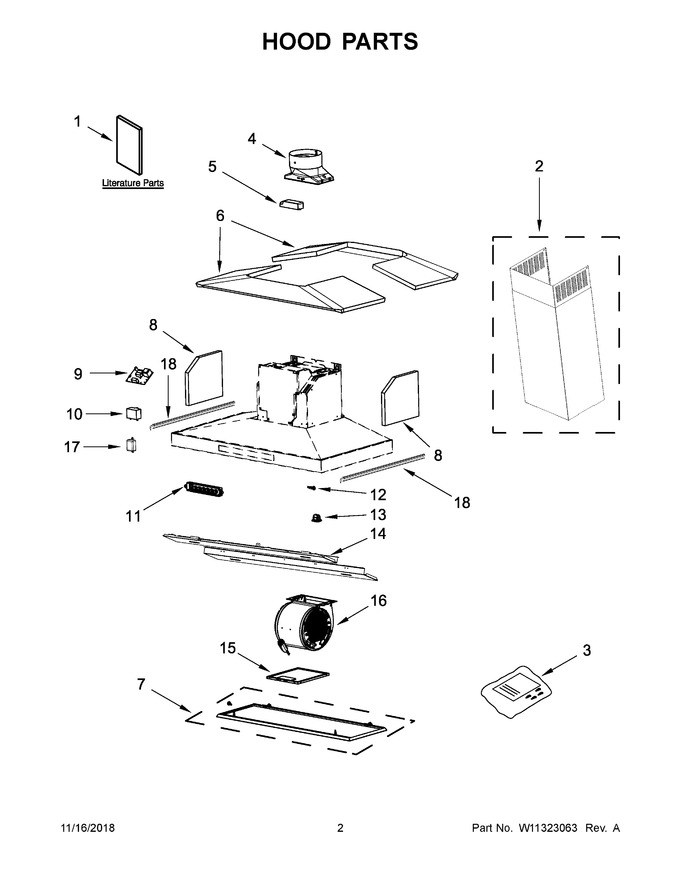

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10674115		Use And Care Guide		Appelez-nous	-
2	W11321565		Chimney, Upper And Lower   (Replaces: W11321336)				$ 358.34
3	W11321341		Hardware, Installation		Appelez-nous	-
4	W10847841		Damper, Hood   (Replaces: W10592040)				$ 140.43
5	W11282989		Driver, Led   (Replaces: W11281878)				$ 237.02
6	W11688720		Insulation (36" Model Only)   (Replaces: W10717245)				$ 210.08
7	W10738512		Panel, Perimetric (36" Model Only)				$ 336.56
8	W11848867		Insulation, Side   (Replaces: W10717244)				$ 81.32
9	W11293971		Board, Control   (Replaces: W11291913)				$ 314.48
10	W11715950		Capacitor (25 Mf)   (Replaces: W11245979)			Immediately	$ 91.53
11	WPW10716813		Control, Electronic   (Replaces: W10716813)			Immediately	$ 288.49
12	W11737108		Sensor, Speed   (Replaces: W10716822)				$ 203.18
13	W10854245		Clip, Panel   (Replaces: W10735735)			Immediately	$ 68.03
14	W11321562		Panel, Led Lamps   (Replaces: W10748933)				$ 354.80
15	W10915369		Filter, Grease   (Replaces: W10727013)			Immediately	$ 39.73
16	W11106377		Blower, Fan   (Replaces: W10638161)			Immediately	$ 661.19
17	W11088596		Filter, Noise				$ 144.18
18	W10916653		Led Strip, Ambient			Immediately	$ 285.44
NI	W10613691		Accessories, Kit, Power Cord				$ 52.92
NI	W11430921		Accessories, Kit, Charcoal Filter (for Non-vented Installations Only)   (Replaces: W10692910)				$ 145.04
NI	W10692945		Accessories, Kit, In-line Smart				$ 458.41
NI	W10688278		Accessories, Kit, Chimney Extension				$ 875.15
NI	W10446915		Accessories, Kit, 6" Makeup Air				$ 316.52
NI	W11430922		Accessories, Kit, Recirculation (for Non-vented Installations Only)   (Replaces: W10692909)			Immediately	$ 109.13

    View Diagram in Separate Window       Print Part List
