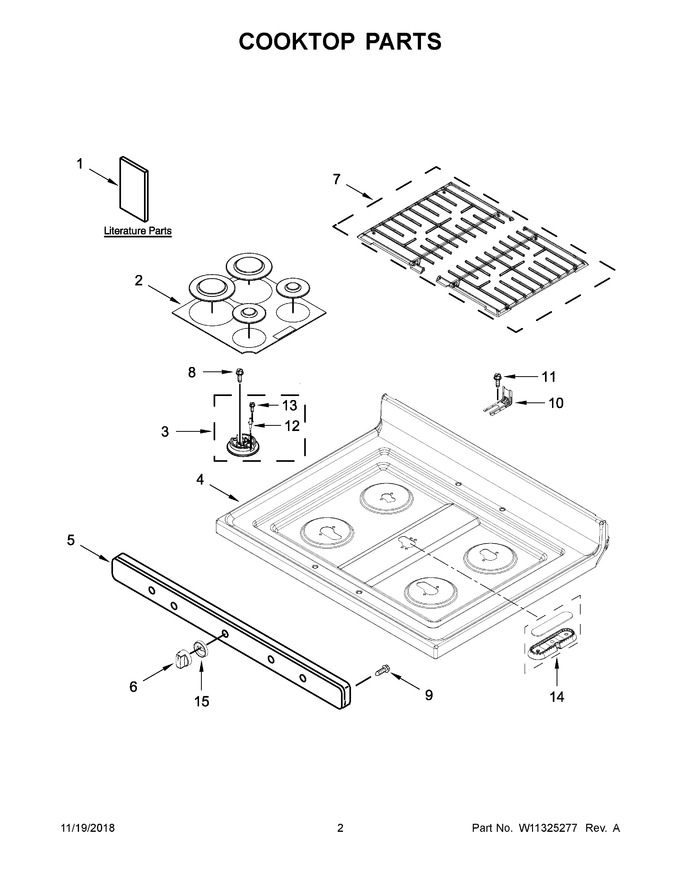

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11122558 | Instructions, Installation |
|
- | |||||
| 2 | W10881749 | Kit, Burner Cap (black (set Of 4)) (Replaces: W10850506) |
|
$ 100.52 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 4 | W10884167 | Cooktop (black) |
|
- | |||||
| 5 | W10724449 | Panel, Manifold (black) |
|
$ 246.39 | |||||
| 6 | W11101426 | Knob, Control (black) (Replaces: W10892253) |
|
$ 73.95 | |||||
| 7 | W11101497 | Kit, Grate (black) (Replaces: W10911970) |
|
$ 328.43 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 12 | WPW10515459 | Electrode (left Front, Left Rear, Right Front) (center) (Replaces: W11194809) |
|
Immediately | $ 39.39 | ||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 14 | W11162114 | Spreader, Flame (Replaces: W10298664) |
|
$ 80.91 | |||||
| 15 | W10894849 | Bezel (black) |
|
- | |||||
| 12A | WPW10515459 | Electrode (right Rear) (Replaces: W10515459) |
|
Immediately | $ 39.39 | ||||
| 15A | W10894848 | Bezel (white) |
|
- | |||||
| 1A | W11122568 | Guide, Use And Care |
|
- | |||||
| 1B | W10842032 | Sheet, Tech |
|
- | |||||
| 1C | W11032799 | Diagram, Wiring |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| 4A | W11040043 | Cooktop (white) (Replaces: W10888303) |
|
$ 574.13 | |||||
| 5A | W10724448 | Panel, Manifold (white) |
|
$ 246.50 | |||||
| 6A | W11101432 | Knob, Control (white) (Replaces: W10892252) |
|
Immediately | $ 74.30 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10842520 | Harness, Main |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 144.81 | |||||
| NI | W11233074 | Harness, Igniter (includes Switches) (Replaces: W10811691) |
|
$ 171.27 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- |
