01 - Cover Sheet

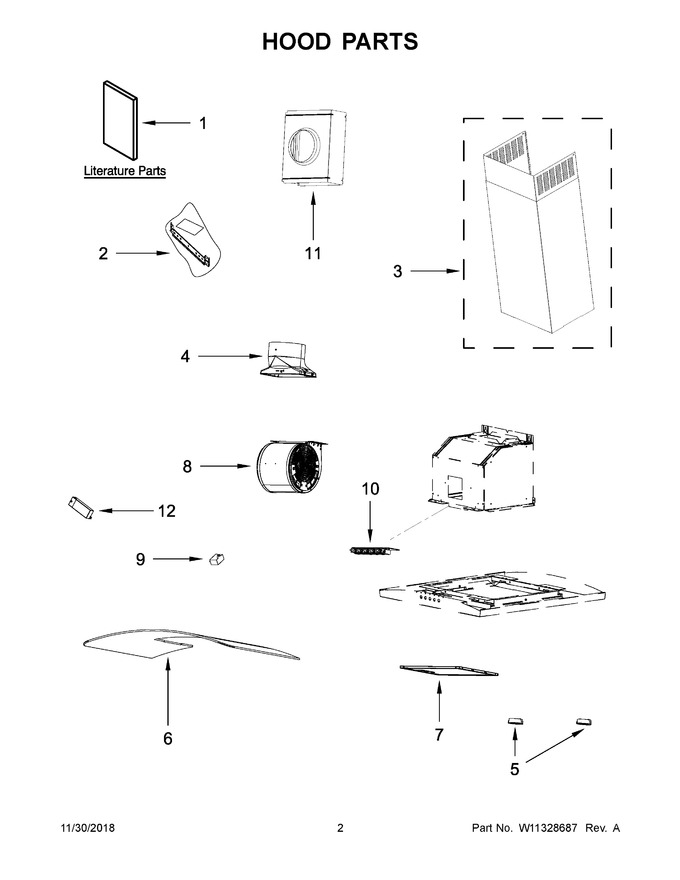

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10836370 | Use And Care Guide |
|
- | |||||
| 2 | W10894816 | Hardware, Installation |
|
$ 92.24 | |||||
| 3 | W11590865 | Chimney, Upper And Lower (Replaces: W11328682) |
|
$ 350.33 | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | W11794237 | Light, Led (Replaces: W10795142) |
|
Immediately | $ 76.20 | ||||
| 6 | WPW10313843 | Glass (30" Model Only) (Replaces: W10313843) |
|
Immediately | $ 304.98 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 8 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| 9 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 10 | W11328754 | Control, Electronic (Replaces: W11328679) |
|
$ 290.80 | |||||
| 11 | W11328674 | Deflector, Recirculation |
|
- | |||||
| 12 | W10895844 | Driver, Led (Replaces: W10894801) |
|
$ 219.84 | |||||
| NI | W10446915 | Accessories, Kit, 6" Makeup Air |
|
$ 316.52 | |||||
| NI | W10894817 | Accessories, Kit, Universal Screw |
|
$ 80.40 | |||||
| NI | W11430939 | Accessories, Kit, Recirculation (for Non-vented Installations Only) (Replaces: W10294733) |
|
$ 137.92 | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 |
