SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack And Track Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)

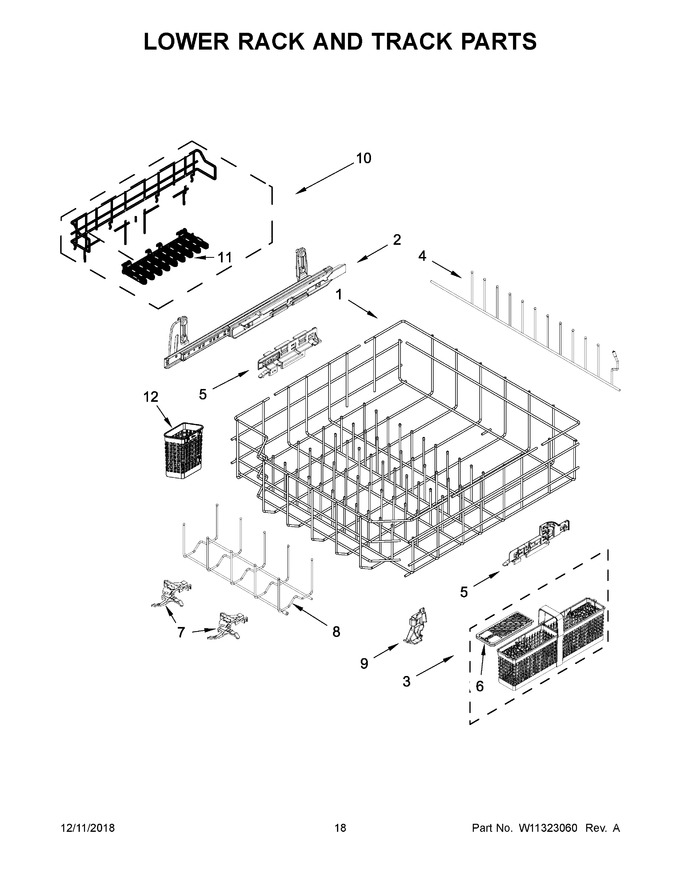

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11690157		Dishrack, Lower   (Replaces: W10665650)				$ 176.75
2	W10822165		Track Assembly (left Hand)   (Replaces: W10781307)			Immediately	$ 167.04
3	W11767095		Basket Assembly, Silverware   (Replaces: W10473836)			Immediately	$ 66.50
4	WPW10056351		Tinerow   (Replaces: W10056351)				$ 78.33
5	WPW10473807		Support, Rear Carriage (left Hand)   (Replaces: W10473807)			Immediately	$ 32.31
6	WPW10473835		Lid, Silverware Basket   (Replaces: W10473835)				$ 25.29
7	W11213333		Retainer, Sliding Tine Row   (Replaces: W10713283)				$ 26.37
8	W10610895		Tine Row, Sliding				$ 62.31
9	W11193827		Support, Front Ski (left Hand)   (Replaces: W10473813)				$ 21.92
10	W10610905		Cupshelf Assembly, Side				$ 99.24
11	W10630204		Cupshelf				$ 88.52
12	WPW10482109		Basket, Utensil   (Replaces: W10482109)				$ 84.47
2A	W10822166		Track Assembly (right Hand)   (Replaces: W10781311)			Immediately	$ 165.17
5A	WPW10473809		Support, Rear Carriage (right Hand)   (Replaces: W10473809)			Immediately	$ 31.73
9A	W11197023		Support, Front Ski (right Hand)   (Replaces: W10473817)				$ 30.58

    View Diagram in Separate Window       Print Part List
