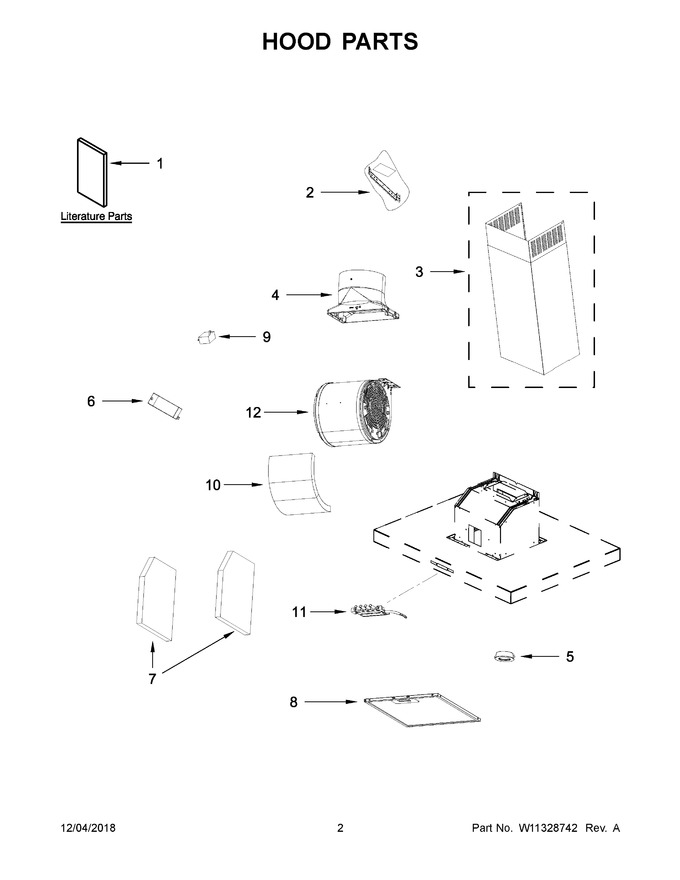

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11174174 | Use And Care Guide |
|
- | |||||
| 2 | W10894816 | Hardware, Installation |
|
$ 92.24 | |||||
| 3 | W11328694 | Chimney, Upper And Lower |
|
Immediately | $ 356.45 | ||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | W11794237 | Light, Led (Replaces: W10795142) |
|
Immediately | $ 76.20 | ||||
| 6 | W10895844 | Driver, Led (Replaces: W10894801) |
|
$ 219.84 | |||||
| 7 | W11848867 | Insulation, Side (Replaces: W10717244) |
|
$ 81.32 | |||||
| 8 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 9 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 10 | W11688852 | Insulation, Motor (Replaces: W10894814) |
|
$ 71.89 | |||||
| 11 | W11328755 | Control, Electronic (Replaces: W11328693) |
|
Immediately | $ 289.09 | ||||
| 12 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| NI | W10446915 | Accessories, Kit, 6" Makeup Air |
|
$ 316.52 | |||||
| NI | W10894817 | Accessories, Kit, Universal Screw |
|
$ 80.40 | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 | ||||
| NI | W11430939 | Accessories, Kit, Recirculation (for Non-vented Installations Only) (Replaces: W10294733) |
|
$ 137.92 |
