01 - Cover Sheet

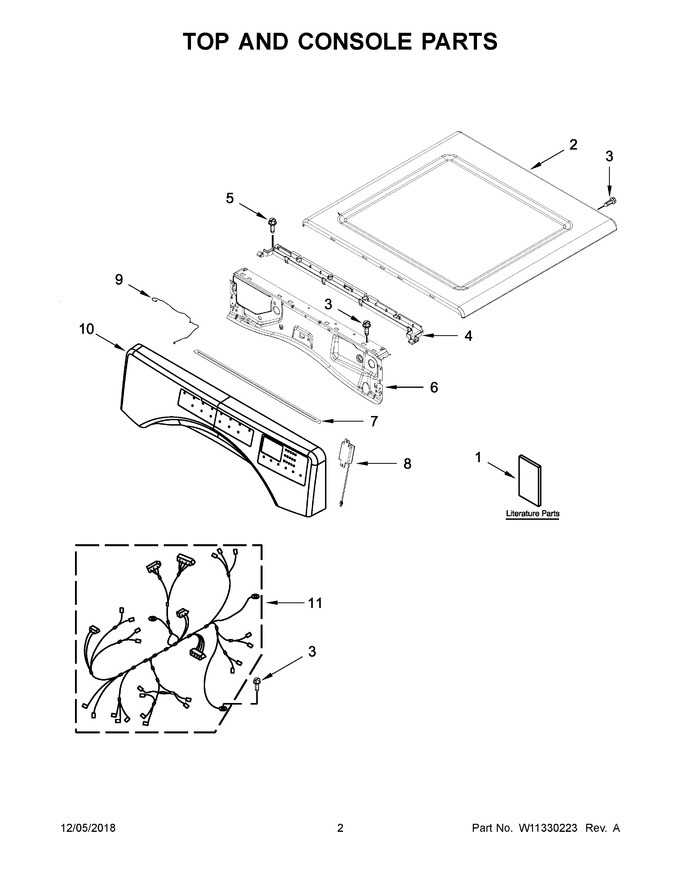

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11210327 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 21.37 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11231800 | Seal |
|
- | |||||
| 8 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 9 | W11459337 | Harness, User Interface (Replaces: W11160620) |
|
$ 30.50 | |||||
| 10 | W11331268 | Assembly, Console (white) (Replaces: W11296377) |
|
Immediately | $ 348.28 | ||||
| 11 | W11109749 | Harness, Wiring (main) |
|
Immediately | $ 150.34 | ||||
| 1A | W11184899 | Tech Sheet |
|
- | |||||
| 1B | W11183136 | Installation Instructions |
|
- | |||||
| 1C | W11241395 | Wiring Diagram |
|
- | |||||
| 1D | W11210329 | Quick Start Guide |
|
- |
