View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

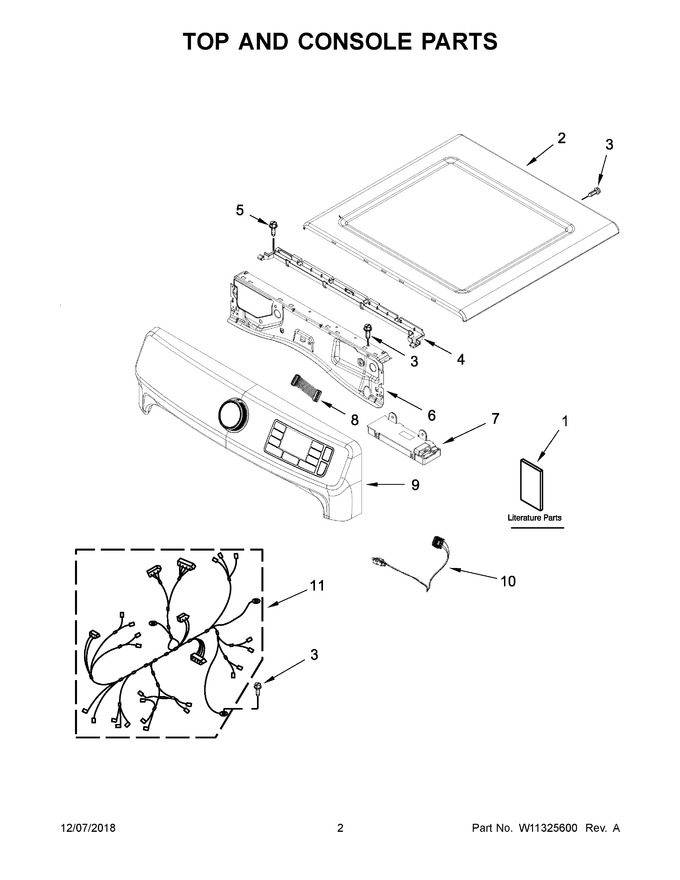

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11204389 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W11316276 | Assembly, Wifi (Replaces: W11123730) |
|
$ 203.05 | |||||
| 8 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 176.49 | |||||
| 9 | W11367038 | Assembly, Console (white) (Replaces: W11296402) |
|
$ 625.10 | |||||
| 10 | W11315705 | Harness, Wifi (Replaces: W11036819) |
|
$ 14.08 | |||||
| 11 | W11157868 | Harness, Wiring (main) |
|
Immediately | $ 249.55 | ||||
| 1A | W11184899 | Tech Sheet |
|
- | |||||
| 1B | W11183136 | Installation Instructions |
|
- | |||||
| 1C | W11241396 | Wiring Diagram |
|
- | |||||
| 1D | W11184894 | Quick Start Guide |
|
- |
