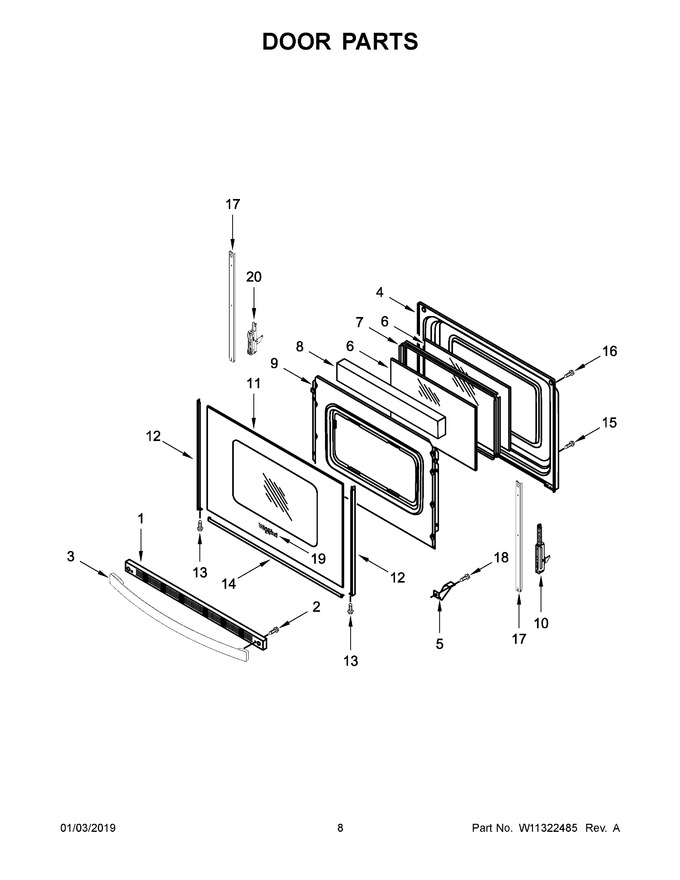

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10310920)			Immediately	$ 162.27
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
3	W11590861		Handle, Door (includes Standoff) (white)   (Replaces: W11039067)			Immediately	$ 179.24
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	W10137382		Clip, Panel			Immediately	$ 43.58
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 208.85
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 209.98
10	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 83.84
11	WPW10409945		Glass, Outer (white)   (Replaces: W10409945)			Immediately	$ 245.12
12	WP8523172		Trim, Side (white (left))   (Replaces: 8523172)			Immediately	$ 62.94
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 55.23
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
17	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 24.91
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
19	W11178521		Badge (nameplate)   (Replaces: W10884775)			Immediately	$ 56.82
20	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
12A	WP8523166		Trim, Side (white (right))   (Replaces: 8523166)			Immediately	$ 75.81

    View Diagram in Separate Window       Print Part List
