01 - Cover Sheet

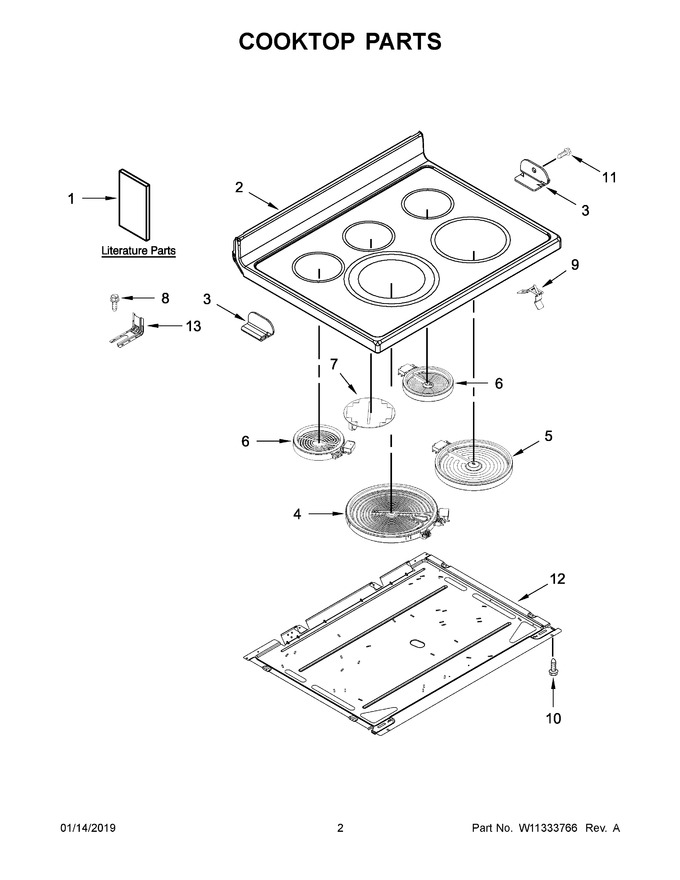

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667166		Use And Care Guide		Appelez-nous	-
2	W10691698		Cooktop (black)   (Replaces: W10655916)			Immediately	$ 531.52
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 347.49
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
6	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 119.66
8	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	3196172		Screw			Immediately	$ 12.12
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
1A	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1B	W10667169		Tech Sheet, (english)		Appelez-nous	-
1C	W11047681		Instructions, Installation		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 105.53
NI	W11134596		Harness, Cooktop (left)			Immediately	$ 206.78
NI	W11134550		Harness, Cooktop (right)				$ 206.01
NI	W11212183		Harness, Sensor				$ 212.08
NI	W11188459		Harness, Main		Appelez-nous	-
