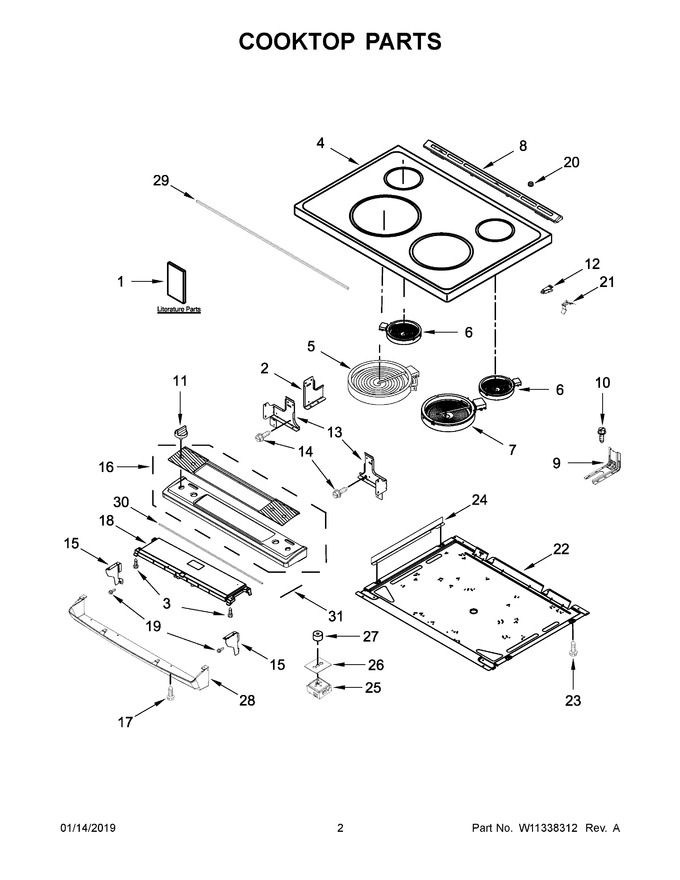

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10842014 | Instructions, Installation |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 4 | W11049901 | Cooktop (black) (Replaces: W10825864) |
|
Immediately | $ 689.65 | ||||
| 5 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | WP8273993 | Element (1800w) (right Front) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 8 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | W11553330 | Knob (stainless) (Replaces: W10844799) |
|
Immediately | $ 17.87 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W11082250 | Console (stainless) (Replaces: W10825358) |
|
Immediately | $ 507.20 | ||||
| 17 | W10516115 | Screw |
|
$ 13.07 | |||||
| 18 | W11536798 | Control, Electronic (lcx) (black) (Replaces: W11204498) |
|
$ 333.16 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 21 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 22 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 23 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 24 | W11175271 | Bracket, Radiant |
|
$ 70.12 | |||||
| 25 | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 26 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 27 | W10702912 | Gasket, Switch Stem |
|
$ 26.84 | |||||
| 28 | W10894124 | Panel, Front (black) (Replaces: W10816943) |
|
$ 504.32 | |||||
| 29 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 30 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 19.20 | |||||
| 31 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 20.63 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 1A | W10887090 | Use And Care Guide |
|
- | |||||
| 1B | W10842032 | Sheet, Tech |
|
- | |||||
| 1C | W10842030 | Wiring Diagram |
|
- | |||||
| 25A | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 25B | W11661906 | Switch, Infinite (right Front) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| NI | W11316895 | Harness, Console (Replaces: W11226233) |
|
$ 185.83 | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11318836 | Harness, Main (Replaces: W11190439) |
|
$ 112.71 | |||||
| NI | W11316896 | Harness, Cooktop (Replaces: W11190436) |
|
$ 204.85 |
