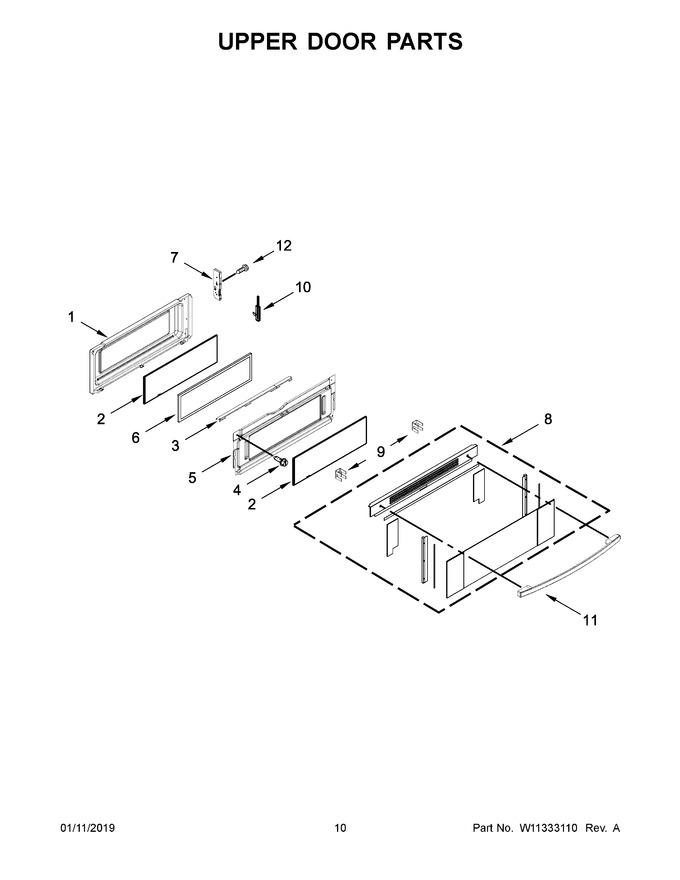

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door |
|
$ 270.90 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W11099272) |
|
$ 161.40 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 154.74 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 227.18 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 89.26 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W10677218 | Assembly, Door (stainless) (Replaces: W10674124) |
|
$ 386.99 | |||||
| 9 | W10575917 | Spacer, Vent Trim |
|
$ 11.94 | |||||
| 10 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 57.88 | ||||
| 11 | WPW10144883 | Assembly, Door Handle (stainless) (Replaces: W10144883) |
|
$ 227.39 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 10A | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 |
