01 - Cover Sheet

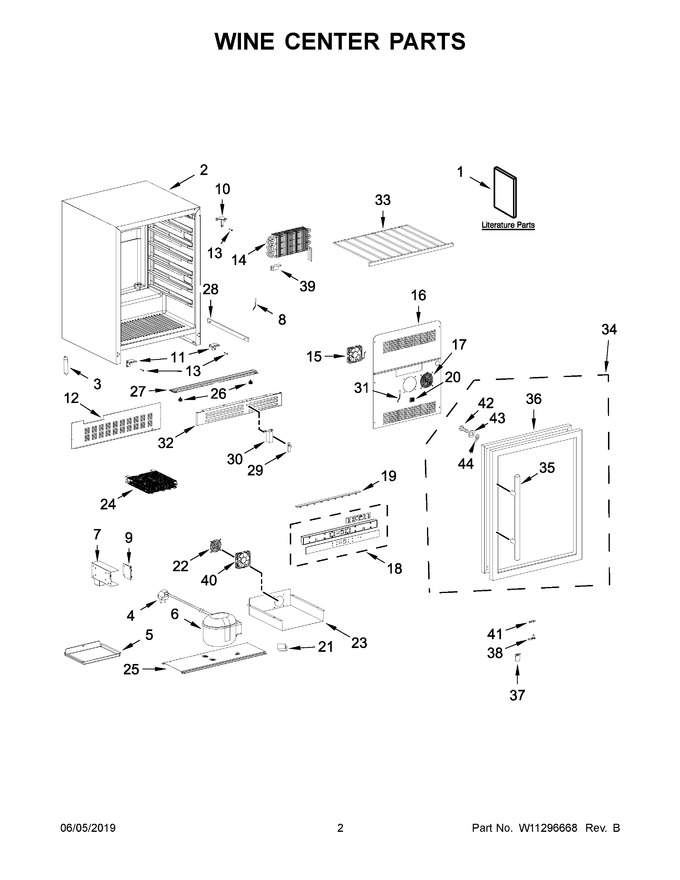

02 - Wine Center Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10739679 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11290639 | Drier Filter |
|
$ 25.82 | |||||
| 4 | W10782176 | Power Cord |
|
- | |||||
| 5 | W11290643 | Water Tray |
|
- | |||||
| 6 | W11297348 | Compressor |
|
$ 555.80 | |||||
| 7 | W11290646 | Cover, Pcb |
|
- | |||||
| 8 | W11290657 | Sensor (red Connector) |
|
$ 112.71 | |||||
| 9 | W11298786 | Main Pcb (Replaces: W11290648) |
|
$ 373.80 | |||||
| 10 | W10782193 | Hinge, Upper Right |
|
$ 69.18 | |||||
| 11 | W11243790 | Hinge, Lower Right |
|
$ 67.53 | |||||
| 12 | W11255346 | Cover, Rear |
|
- | |||||
| 13 | W10782261 | Screw |
|
- | |||||
| 14 | W10782196 | Evaporator |
|
$ 265.37 | |||||
| 15 | W10792631 | Fan Assembly, Evaporator |
|
$ 233.52 | |||||
| 16 | W10782262 | Cover, Fan |
|
- | |||||
| 17 | W10782263 | Cover, Evaporator Fan |
|
- | |||||
| 18 | W11530280 | Control Panel Assembly (Replaces: W11297357) |
|
$ 315.64 | |||||
| 19 | W10782264 | Led Light |
|
- | |||||
| 20 | W10782222 | Cover, Sensor |
|
- | |||||
| 21 | W11255778 | Foam |
|
- | |||||
| 22 | W10782255 | Cover, Condenser Fan |
|
- | |||||
| 23 | W11255160 | Cover, Condenser |
|
- | |||||
| 24 | W10782251 | Condenser |
|
- | |||||
| 25 | W11255161 | Baseplate |
|
- | |||||
| 26 | W10782249 | Leg |
|
Immediately | $ 16.03 | ||||
| 27 | W11255162 | Support, Front |
|
- | |||||
| 28 | W10782256 | Slide, Rail |
|
- | |||||
| 29 | W10782243 | Switch |
|
- | |||||
| 30 | W10782242 | Support, Switch |
|
- | |||||
| 31 | W11296649 | Sensor (white Connector) |
|
$ 112.71 | |||||
| 32 | W11255164 | Grille |
|
- | |||||
| 33 | W11255165 | Rack Assembly |
|
$ 237.41 | |||||
| 34 | W10782265 | Door Assembly |
|
$ 600.36 | |||||
| 35 | W10782266 | Handle |
|
$ 224.39 | |||||
| 36 | W10782239 | Gasket, Door |
|
$ 240.08 | |||||
| 37 | W10782267 | Plate, Switch |
|
Immediately | $ 83.62 | ||||
| 38 | W10782241 | Axis, Door |
|
$ 57.38 | |||||
| 39 | W11255620 | Foam |
|
- | |||||
| 40 | W11678274 | Fan Assembly, Condenser (Replaces: W10782254) |
|
Immediately | $ 281.11 | ||||
| 41 | W11255595 | Stop, Door |
|
$ 68.81 | |||||
| 42 | W11104118 | Screw |
|
Immediately | $ 12.55 | ||||
| 43 | W11104122 | Spring, Washer |
|
- | |||||
| 44 | W11104121 | Washer |
|
- | |||||
| 10A | W10782260 | Hinge, Upper Left |
|
$ 66.84 | |||||
| 11A | W11243796 | Hinge, Lower Left |
|
$ 67.53 | |||||
| 1A | W10792628 | Energy Guide |
|
- | |||||
| NI | N/P | Refrigerant Charge 1.23oz R600a |
|
- |
