SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

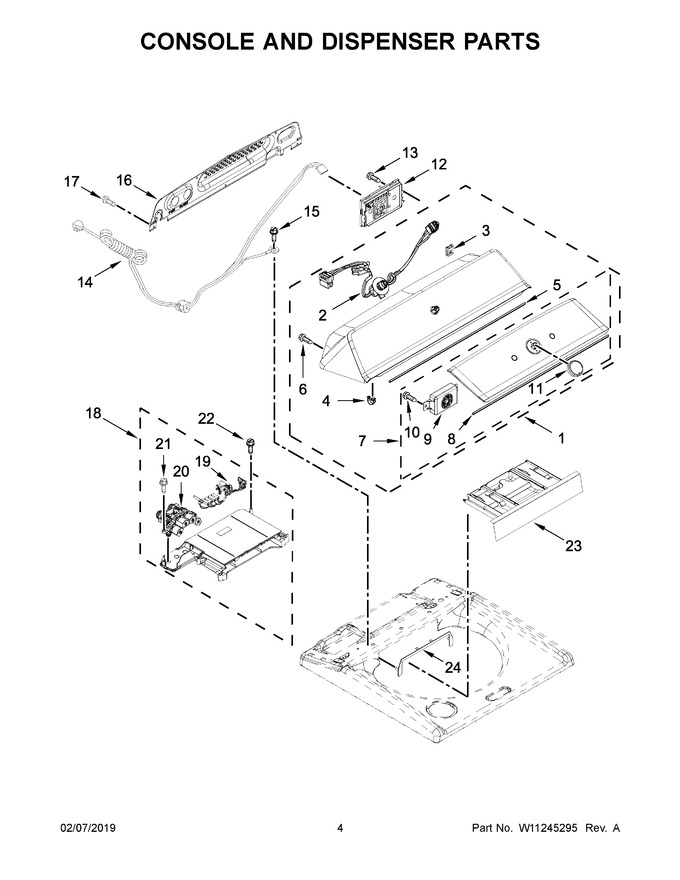

03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11112662		Console (chrome Shadow)   (Replaces: W11035010)				$ 642.72
2	W11199207		Harness, Ui   (Replaces: W10771770)				$ 153.39
3	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
4	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
5	W10726624		Seal, Console				$ 29.03
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
7	W11115283		Assembly, Fascia (grey)   (Replaces: W11035069)			Immediately	$ 497.30
8	W10618933		Seal, Console		Appelez-nous	-
9	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
10	WP9740849		Screw   (Replaces: 9740849)				$ 6.57
11	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 48.55
12	W11417461		Control Unit Assembly, Machine And Motor   (Replaces: W11105151)				$ 470.84
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
14	W11096073		Cord, Power   (Replaces: W10770108)				$ 113.96
15	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
16	W10611544		Panel, Console Rear Cover				$ 307.11
17	W11685943		Screw   (Replaces: W10660565)				$ 13.47
18	W11172234		Assembly, Housing   (Replaces: W11096285)			Immediately	$ 345.16
19	W11193817		Harness, Valve   (Replaces: W10849297)			Immediately	$ 167.72
20	W11165546		Valve, Water Inlet   (Replaces: W11096267)			Immediately	$ 104.41
21	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 7.92
22	W11700520		Screw   (Replaces: 3400061)				$ 12.85
23	W11397976		Assembly, Dispenser Drawer (chrome Shadow)   (Replaces: W10795361)			Immediately	$ 95.67
24	W10601876		Assembly, Dispenser Bezel (chrome Shadow)				$ 27.93

    View Diagram in Separate Window       Print Part List
