01 - Cover Sheet

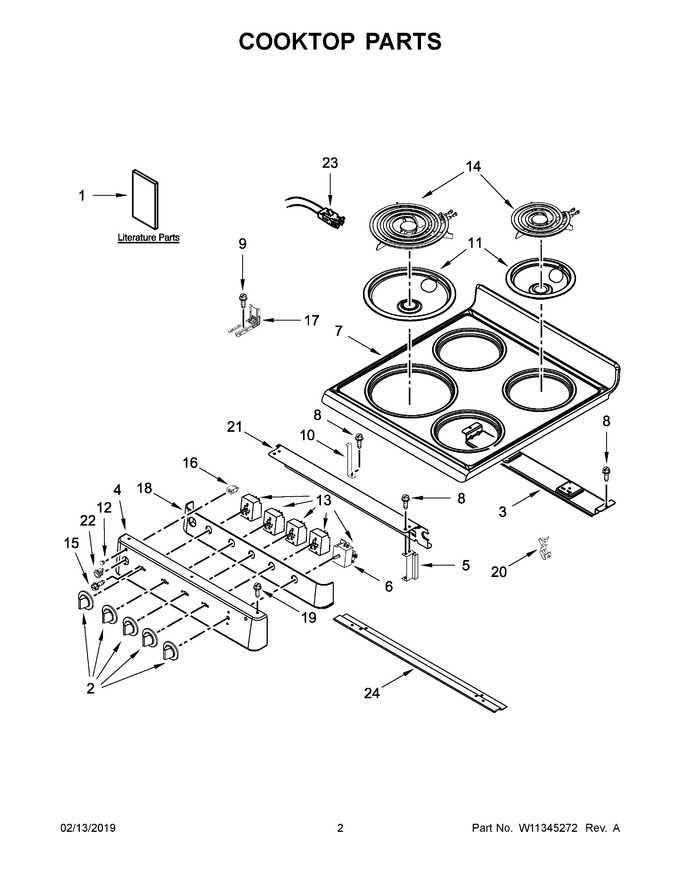

02 - Cooktop Parts
03 - Chassis Parts
04 - Door And Drawer Parts
05 - Backguard Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11256486 | Use & Care Guide |
|
- | |||||
| 2 | WPW10183393 | Knob, Control (Replaces: W10183393) |
|
$ 19.57 | |||||
| 3 | W10168363 | Support, Burner |
|
- | |||||
| 4 | W10240782 | Panel, Control (white) |
|
- | |||||
| 5 | W10239596 | Bracket, Support Left |
|
- | |||||
| 6 | WP74009277 | Thermostat (Replaces: W10179656) |
|
$ 302.05 | |||||
| 7 | W10175582 | Cooktop (white) |
|
- | |||||
| 8 | W10837731 | Screw (Replaces: W10493726) |
|
$ 7.47 | |||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 10 | W10226319 | Bracket, Cooktop |
|
- | |||||
| 11 | WPW10196405 | Bowl, Chrome (8" (left Front)) (Replaces: W10179653) |
|
Immediately | $ 15.56 | ||||
| 12 | W11690131 | Lens, Indicator (Replaces: W10179657) |
|
$ 7.07 | |||||
| 13 | WPW10179654 | Switch, Infinite (left Front) (Replaces: W10179654) |
|
$ 151.68 | |||||
| 14 | W11396790 | Element, Coil Heating (2150w) (left Front) (Replaces: W11199518) |
|
Immediately | $ 113.84 | ||||
| 15 | WP3400882 | Screw (Replaces: 98005663) |
|
Immediately | $ 6.80 | ||||
| 16 | W10852510 | Indicator, Light (Replaces: W10185551) |
|
$ 111.42 | |||||
| 17 | WPW10613666 | Bracket, Anti-tip (Replaces: W10613666) |
|
$ 16.16 | |||||
| 18 | W11688742 | Foil, Panel (Replaces: W10237433) |
|
- | |||||
| 19 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 16.74 | |||||
| 20 | 98005642 | Clip, Therm Bulb |
|
Immediately | $ 78.37 | ||||
| 21 | W10159818 | Shield, Control |
|
- | |||||
| 22 | 98011571 | Switch, Rocker (white) |
|
- | |||||
| 23 | 814399 | Receptacle, Element |
|
Immediately | $ 38.87 | ||||
| 24 | W10222744 | Z Bracket, Manifold |
|
- | |||||
| 11A | WPW10196406 | Bowl, Chrome (6" (left Rear, Right Rear, Right Front)) (Replaces: W10179650) |
|
Immediately | $ 12.05 | ||||
| 13A | WP74002328 | Switch, Infinite (left Rear, Right Rear, Right Front) (Replaces: W10179655) |
|
$ 151.26 | |||||
| 14A | W11396792 | Element, Coil Heating (1300w) (left Rear, Right Rear, Right Front) (Replaces: W11199519) |
|
Immediately | $ 112.00 | ||||
| 1A | W10459122 | Insallation Instructions |
|
- | |||||
| 1B | W10181003 | Tech Sheet |
|
- | |||||
| 1C | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 5A | W10239597 | Bracket, Support Right |
|
- | |||||
| NI | W11176347 | Wire, Thermostat To Bake Element |
|
- | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | W11176348 | Wire, Thermostat Br Bake Element (yellow) |
|
- | |||||
| NI | W11176349 | Wire, Broiler Element To Thermostat To Bk |
|
- | |||||
| NI | W11176361 | Wire, Tstat (4) To Tstat (black) |
|
- | |||||
| NI | W11176362 | Wire, Tstat (h) To Oven Indicator Light (black) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 30.09 | |||||
| NI | W11176326 | Harness, Wire (surface To Panel Assembly) |
|
- | |||||
| NI | W11219526 | Harness, Wire (oven Light Switch) |
|
- | |||||
| NI | W11188382 | Harness, Wire (ground) |
|
- | |||||
| NI | W11241454 | Harness, Switch |
|
- | |||||
| NI | W11176327 | Wire, Infinite To Term Block L1 (black) |
|
- | |||||
| NI | W11176350 | Wire, Term Block To Thermostat (red) |
|
- |
