View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

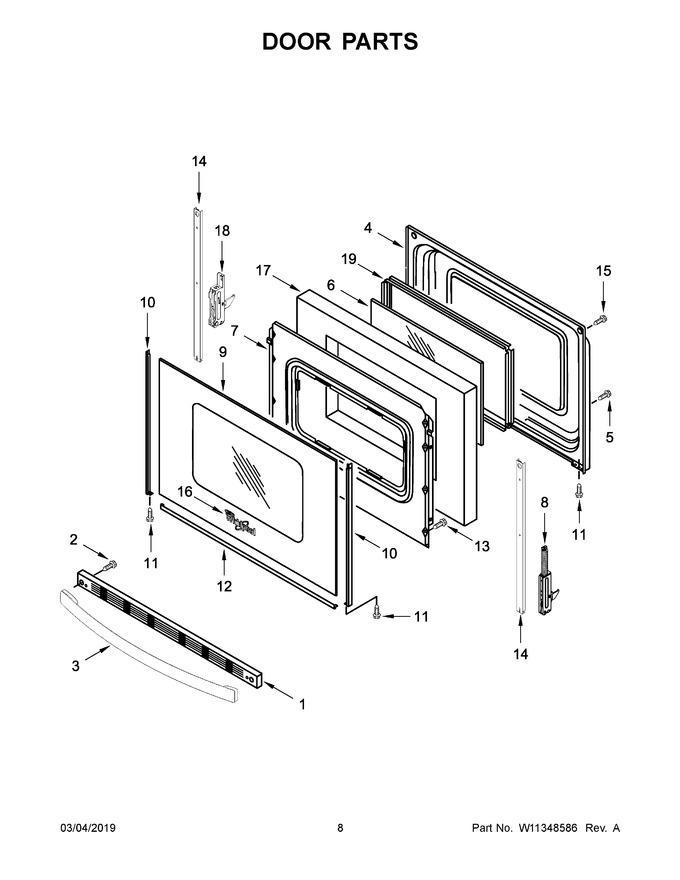

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 3 | W11553213 | Handle, Door (includes Standoff) (black) (Replaces: W11039068) |
|
Immediately | $ 210.02 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 209.98 | |||||
| 8 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 83.84 | ||||
| 9 | W11702167 | Glass Assembly, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 166.26 | ||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 17 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 18 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 19 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 10A | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 10B | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 10C | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12A | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 1A | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 3A | W11590861 | Handle, Door (includes Standoff) (white) (Replaces: W11039067) |
|
Immediately | $ 179.24 | ||||
| 9A | WPW10409945 | Glass Assembly, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 245.12 |
