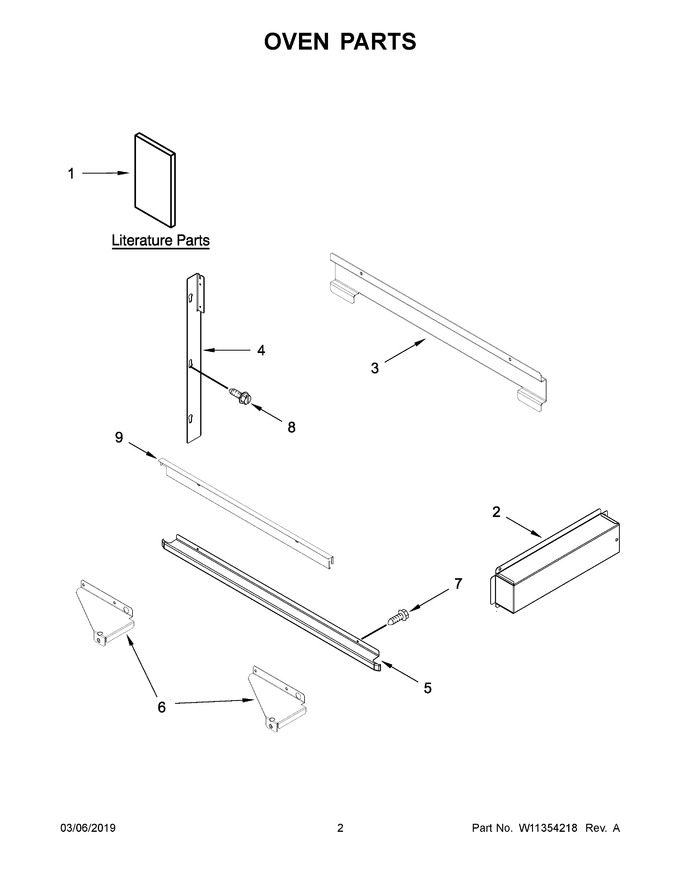

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10075750		Instructions, Installation (english/french)		Appelez-nous	-
2	W10239155		Box, Conduit				$ 92.88
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 62.93
4	W10416256		Rail, Side (left)				$ 46.45
5	W10767439		Trim, Bottom (black)		Appelez-nous	-
6	W10239156		Bracket, Lower (left)				$ 19.12
7	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 7.36
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	W10444127		Cover, 30" Compliment				$ 117.66
1A	W10754339		Guide, Use & Care (microwave)		Appelez-nous	-
1B	W10767739		Sheet, Tech		Appelez-nous	-
4A	W10416255		Rail, Side (right)				$ 42.65
5A	W11359268		Trim, Bottom (stainless)   (Replaces: W10420958)				$ 114.07
6A	W10239157		Bracket, Lower (right)				$ 18.66
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11449277		Harness, Interlock   (Replaces: W10720308)			Immediately	$ 140.42
NI	W11356954		Harness, Fan & Turntable   (Replaces: W10874059)				$ 133.88
NI	W10874060		Harness, Inverter				$ 133.84
NI	W11356986		Harness, Communication   (Replaces: W10524303)			Immediately	$ 101.57
NI	4450800		Screw, Grounding				$ 12.12
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
NI	W11356992		Conduit   (Replaces: W10209041)				$ 200.96
NI	W11356977		Harness, Cable Tree Assembly   (Replaces: W10889134)				$ 76.56
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 10.95
NI	W11325605		Jumper Harness, Communication   (Replaces: W11198503)				$ 172.07
