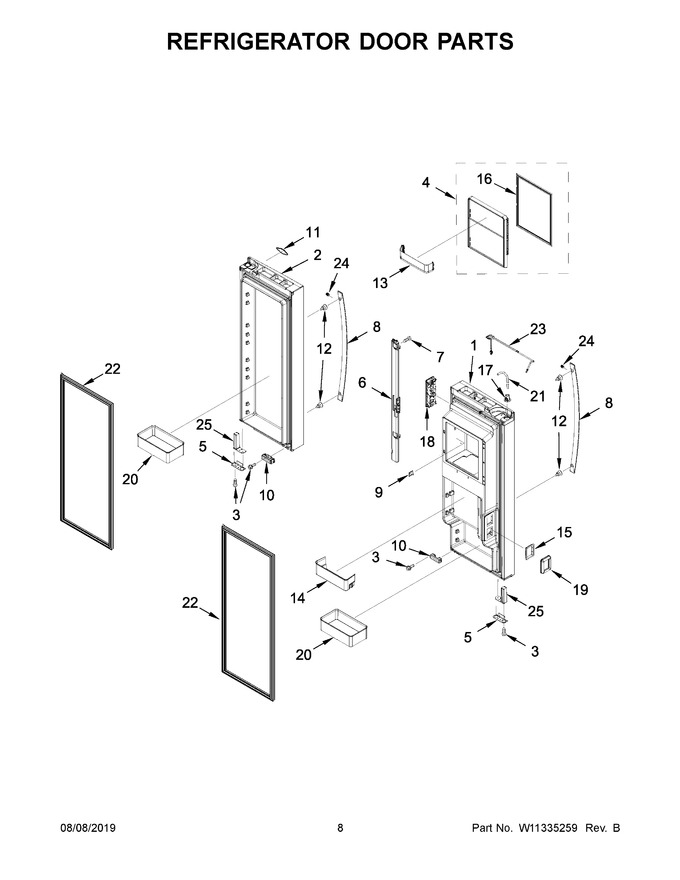

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11129497 | Door, Refrigerator Left Hand (stainless (also Order Item # 18)) (Replaces: W10895452) |
|
$ 1,045.39 | |||||
| 2 | W11129485 | Door, Refrigerator Right Hand (stainless) (Replaces: W10895464) |
|
$ 793.49 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W11594925 | Assembly, Ice Door (Replaces: W10702031) |
|
$ 152.10 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 68.50 | ||||
| 6 | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 127.61 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 164.98 | ||||
| 9 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 32.99 | |||||
| 10 | W10798308 | Bumper, Door (grey) |
|
$ 24.27 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | W11188797 | Trivet, Ice Compartment Door (Replaces: W10697307) |
|
$ 95.18 | |||||
| 14 | W11099662 | Bin, Door (medium) (Replaces: W10883264) |
|
$ 101.56 | |||||
| 15 | W10720065 | Retainer, Door Duct |
|
$ 47.67 | |||||
| 16 | W11625084 | Gasket, Ice Door (Replaces: W10853439) |
|
$ 61.86 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11314429 | Assembly, User Interface (Replaces: W10889614) |
|
$ 290.33 | |||||
| 19 | W10720073 | Gasket, Cooling Duct |
|
$ 48.90 | |||||
| 20 | W11213874 | Bin, Door (gallon, Half) (Replaces: W10697272) |
|
$ 158.97 | |||||
| 21 | W10883965 | Tube, Water |
|
$ 116.57 | |||||
| 22 | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 295.11 | ||||
| 23 | W11366500 | Assembly, Fill Tube (icemaker) (Replaces: W10917894) |
|
Immediately | $ 108.11 | ||||
| 24 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 25 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 23.45 | |||||
| 25A | W11189598 | Closer, Door (right Hand) (Replaces: W10872969) |
|
$ 23.45 |
