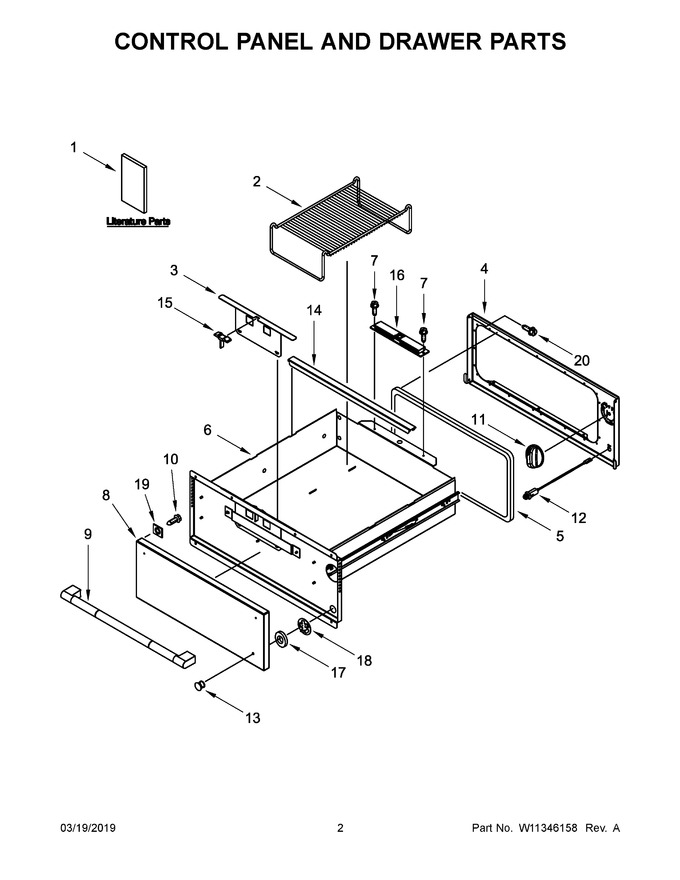

02 - Control Panel And Drawer Parts


03 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11295550		Guide, Use & Care		Appelez-nous	-
2	8273277		Rack, Warming Drawer				$ 99.80
3	W10162376		Slide, Vent				$ 96.82
4	W10515383		Panel, Front				$ 130.82
5	W10164998		Gasket, Drawer				$ 36.60
6	WP9763646		Assembly, Drawer   (Replaces: 9763646)			Immediately	$ 462.79
7	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.81
8	W11291101		Skin, Drawer		Appelez-nous	-
9	W11342060		Assembly, Handle (stainless)   (Replaces: W11251202)				$ 358.34
10	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
11	W10274390		Knob, Thermostat				$ 54.63
12	W10489562		Light, Indicator				$ 91.92
13	4456314		Lens, Indicator				$ 91.89
14	W10409138		Rail, Pan			Immediately	$ 104.96
15	9763125		Grip, Vent				$ 72.07
16	W10035910		Magnet				$ 181.67
17	4456861		Spacer, Lens				$ 6.66
18	4456862		Clip, Lens Retainer				$ 6.63
19	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 15.69
20	WP7101P434-60		Screw (front Frame To Cabinet)   (Replaces: 7101P434-60)				$ 6.57
1A	W10064720		Sheet, Tech		Appelez-nous	-
1B	W11295554		Instructions, Installation		Appelez-nous	-
