01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts

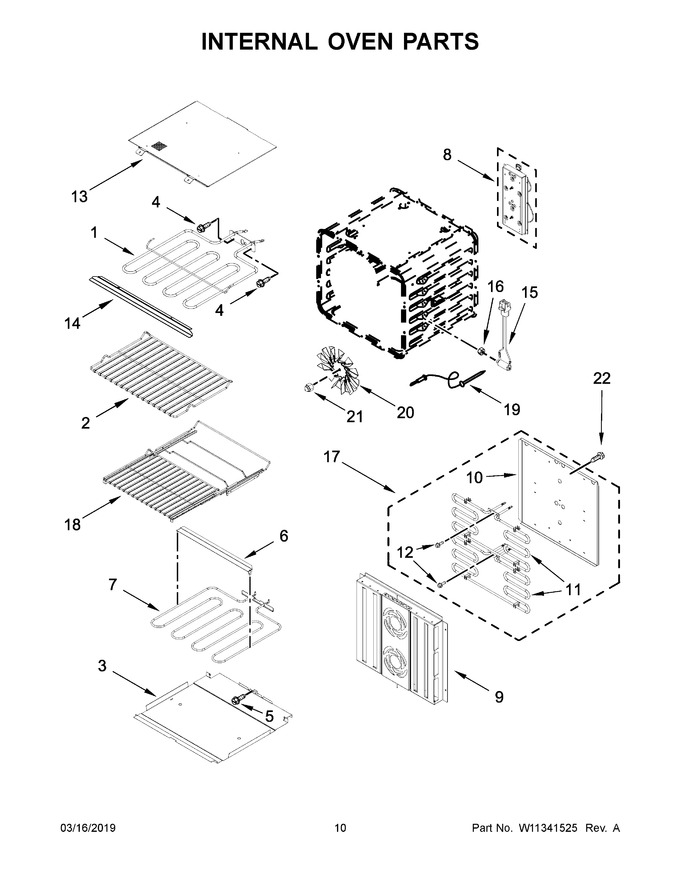

06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804429		Element, Broil   (Replaces: W10764078)			Immediately	$ 137.62
2	W11242906		Rack, Oven				$ 184.75
3	W10318198		Tray, Hidden Bake				$ 176.25
4	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
6	W10282957		Crossbar, Hidden Bake Tray				$ 42.72
7	W11545804		Element, Bake   (Replaces: W10546517)			Immediately	$ 131.81
8	W11255349		Assembly, Convection Motor   (Replaces: W11200176)			Immediately	$ 371.93
9	W11313747		Assembly, Baffle				$ 214.88
10	W10853277		Shield, Convection				$ 84.79
11	W10663735		Element, Convection				$ 277.74
12	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.54
13	W11290999		Shield, Broil Element   (Replaces: W10911205)				$ 189.86
14	W10588737		Shield, Broil Front				$ 94.86
15	W11821374		Jack, Meat Probe   (Replaces: W11252826)				$ 69.46
16	W11231343		Nut, Locking   (Replaces: W11033111)				$ 12.12
17	W11098805		Assembly, Convection Element   (Replaces: W10854021)				$ 231.32
18	W11256305		Rack, Sliding				$ 329.03
19	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 89.76
20	W11301887		Blade, Convection Fan   (Replaces: W10803141)			Immediately	$ 318.46
21	W10794042		Nut, Acorn (lh)   (Replaces: W10631504)				$ 11.83
22	W10739592		Screw		Appelez-nous	-
21A	W10803140		Nut, Acorn (rh)				$ 12.39

    View Diagram in Separate Window       Print Part List
